| Capacity (Gallons) |
Model No. |
Dimensions |
# of Shelves |
# of Tray Liners |
# of Doors |
Weight |
| 6 |
CL06* |
23"W x 18"D x 22"H |
0 |
1 |
1 |
92 lbs. |

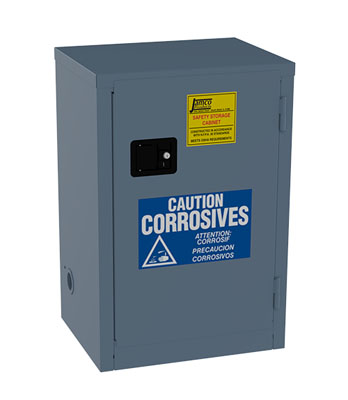

| 12 |
CL12 |
23"W x 18"D x 35"H |
1 |
2 |
1 |
138 lbs. |

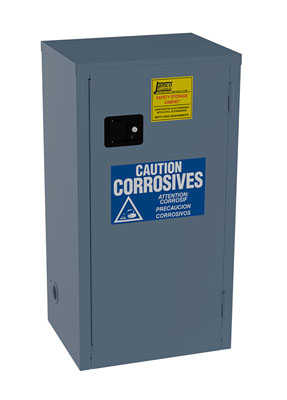

| 18 |
CL18 |
23"W x 18"D x 44"H |
2 |
3 |
1 |
176 lbs. |

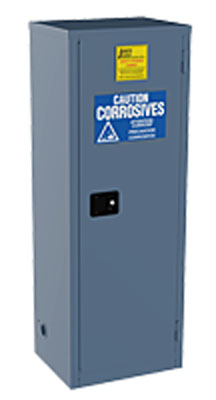

| 24 |
CL24 |
23"W x 18"D x 65"H |
3 |
4 |
1 |
248 lbs. |
- All welded double wall 18 gauge construction with 1-1/2" insulating air space.
- 2" leakproof sill to contain leaks.
- Lockable flush mounted handle with 2 keys.
- Doors have 3 point locking system and radius edges.
- Doors are double walled, 14 gauge outside & 18 gauge inside.
- 4" heavy duty welded hinges with brass pins.
- Twin 2" flame arrester vents.
- Adjustable leveling feet.
- Powder coated blue finish.
- Safety signage in large red letters.
- Galvanized steel shelf louver at mid height.
- Polyethylene tray liner for shelves & sill.
- Grounding connector.
- Meets OSHA, and NFPA code 30 & UFC 79 standards.
- Manual close doors(open to full 180 degrees).
- Chemical storage maximum - Class I & II - 60 gallons, Class III - 120 gallons
