| Model No. | Dimensions | Max. No. Cylinders | Weight |
| CH040 | 33"W x 40"D x 40"H | 4 | 170 lbs. |

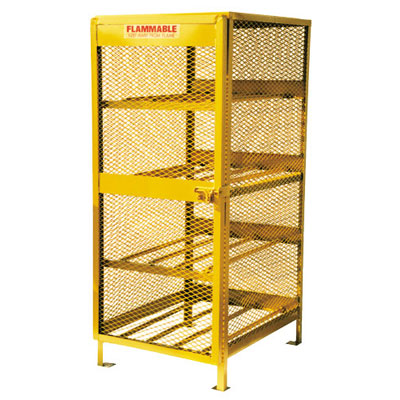

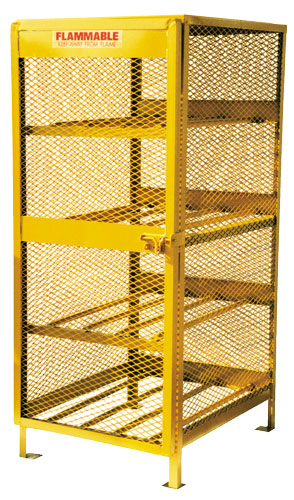

| CH080 | 33"W x 40"D x 71"H | 8 | 280 lbs. |

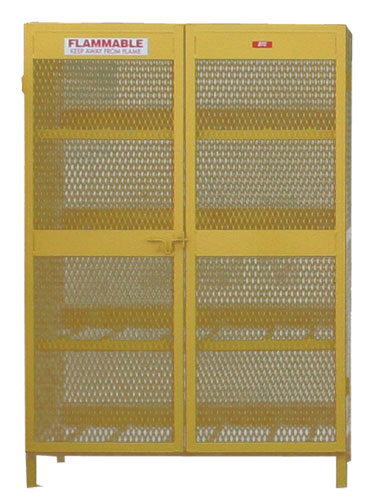

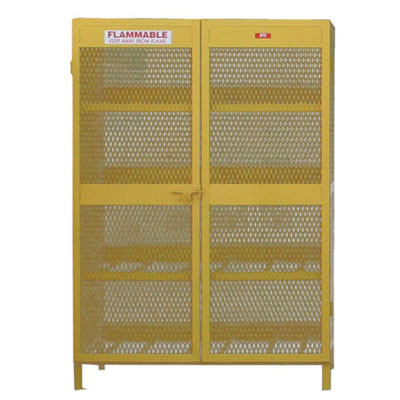

| CH120 | 50"W x 40"D x 71"H | 12 | 384 lbs. |

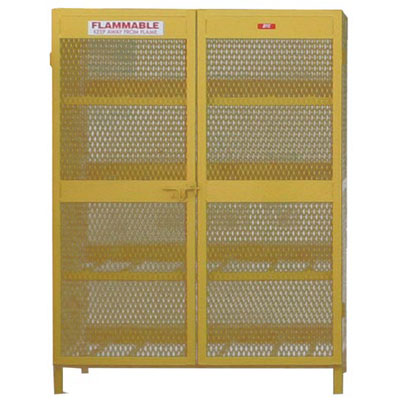

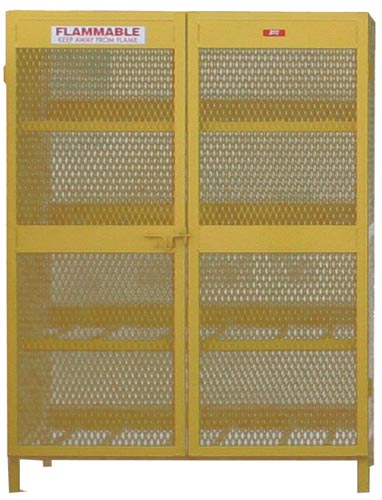

| CH160 | 64"W x 40"D x 71"H | 16 | 516 lbs. |
- Stores forklift propane cylinders on their sides.
- Lockable mesh door(s) with slide bolt hasp, lock not included.
- All welded, ready to use, meets OSHA 1910.
- 13-gauge flattened mesh sides.
- 14-gauge solid top.
- 1-1/2" x 3/16" thick corner angles.
- Foot pads with pre-drilled holes.
- Powder coated safety yellow.
- Safety signage in large red letters.
- Smooth 1" tube support rails for cylinder protection.
- Holds 20-43 lb. Horizontal Cylinders.
Product details
Model # = CH120
Weight
Width
Depth
444
50
40
Height
Adjustable Height
Freight Class
71
No
175
Quick Ship
Ships Assembled
Material
No
Yes
14ga Steel
Total Capacity
Shelf Capacity
Number of Fixed Shelves
12 cyl
-
4
Number of Adjustable Shelves
Number of Doors
Manual Close or Self Close Doors
-
2
-
Number of Bins
Pegboard Included
Loubvered Panel Included
-
-
-
Number of Drawers
Optional Drawers
Legal or Letter Size Drawers
-
No
-
Option to Add Casters
Caster Material
Caster Brakes
No
-
-
Floor Lock
Handle Type
Country of Origin
-
Other
USA
Online shipping quotes for orders over 8 pieces are likely incorrect and invalid. Please call for a quote.
