| Model | Style | Power Source | Capacity (lbs.) | Lift Height |
Wheels | Dimensions | Weight (lbs.) |
| F88567B5 | Manual | Manual Drive Manual Lift |
800 | 71" | (2) 6" Front Rigid & (2) 4" Rear Swivel |
90"W x 30"D x 78"H | 255 |
| F87040B4 | 84" | 43"W x 30"D x 90"H | 380 |

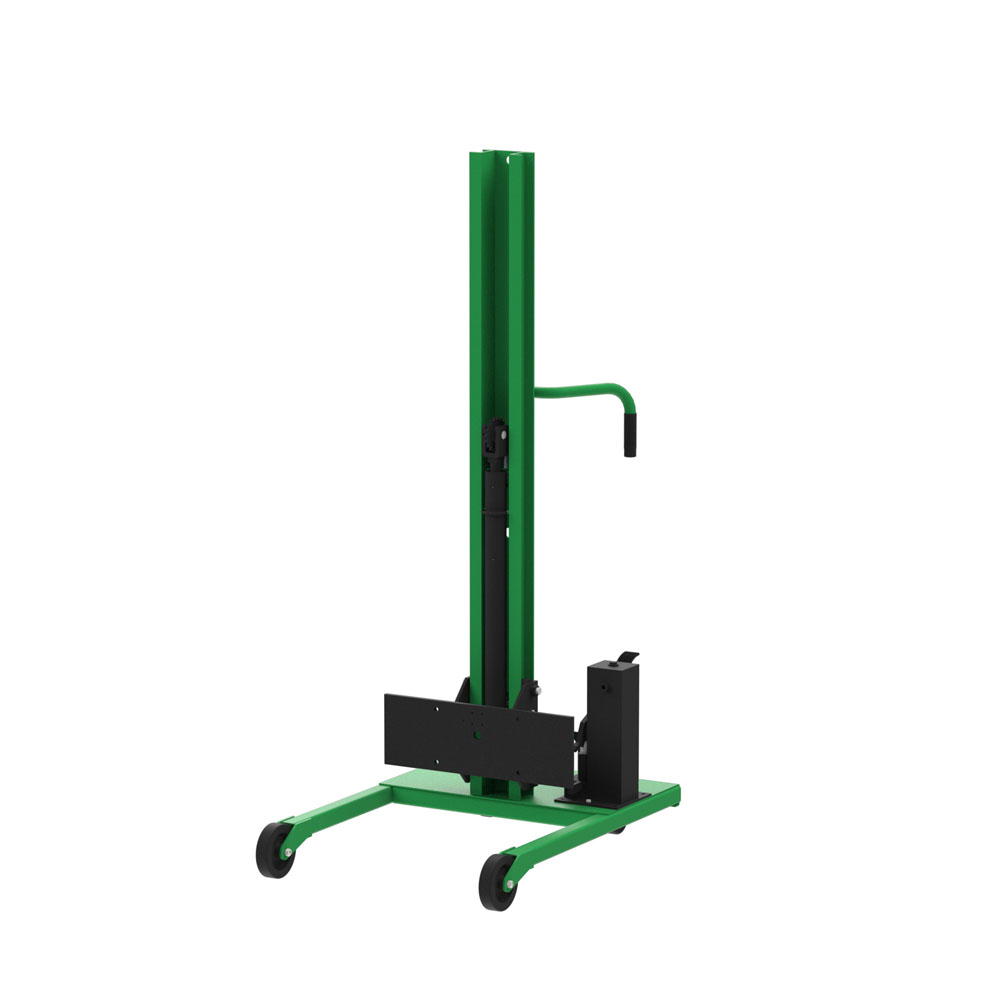

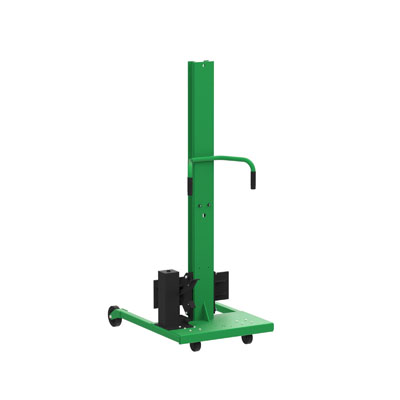

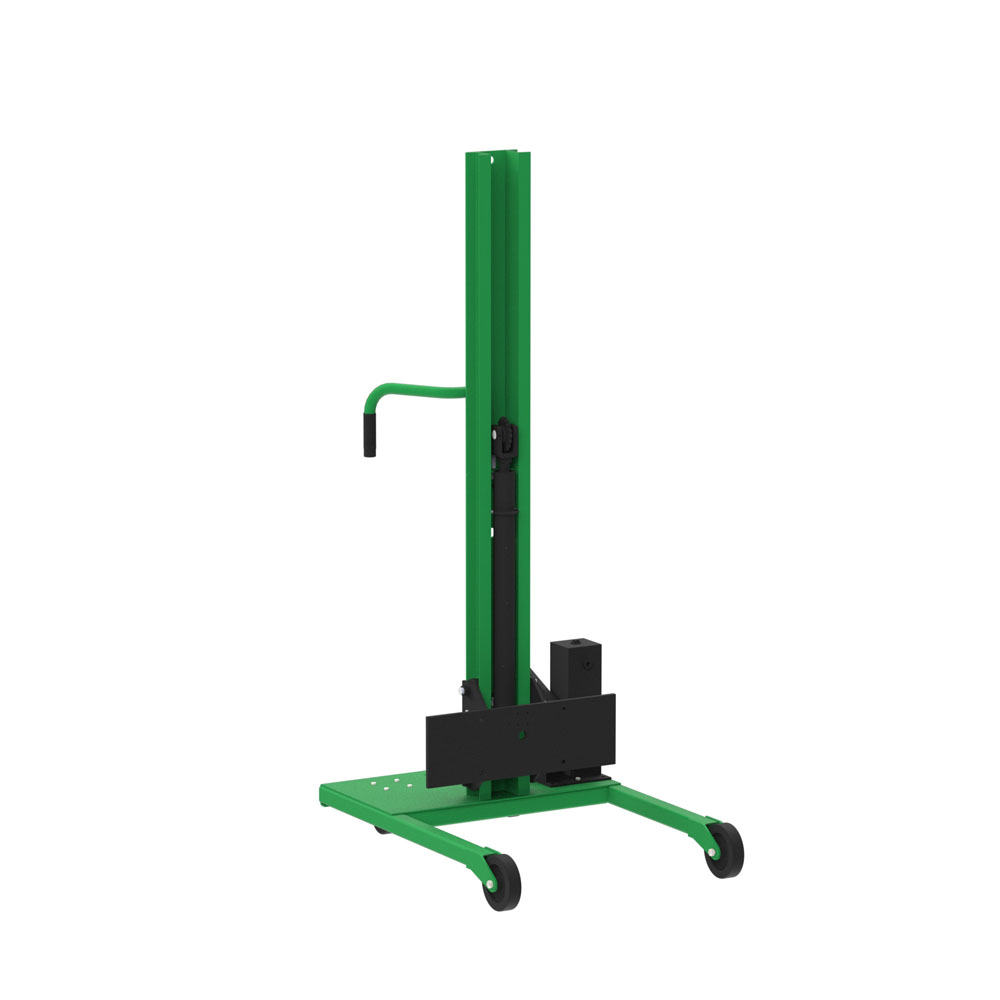

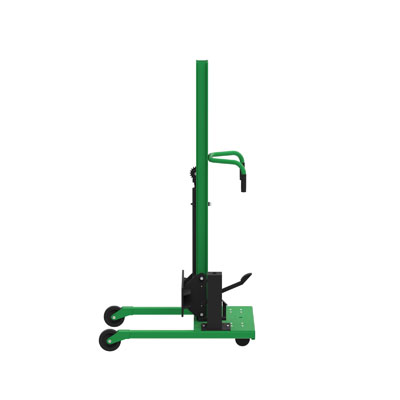

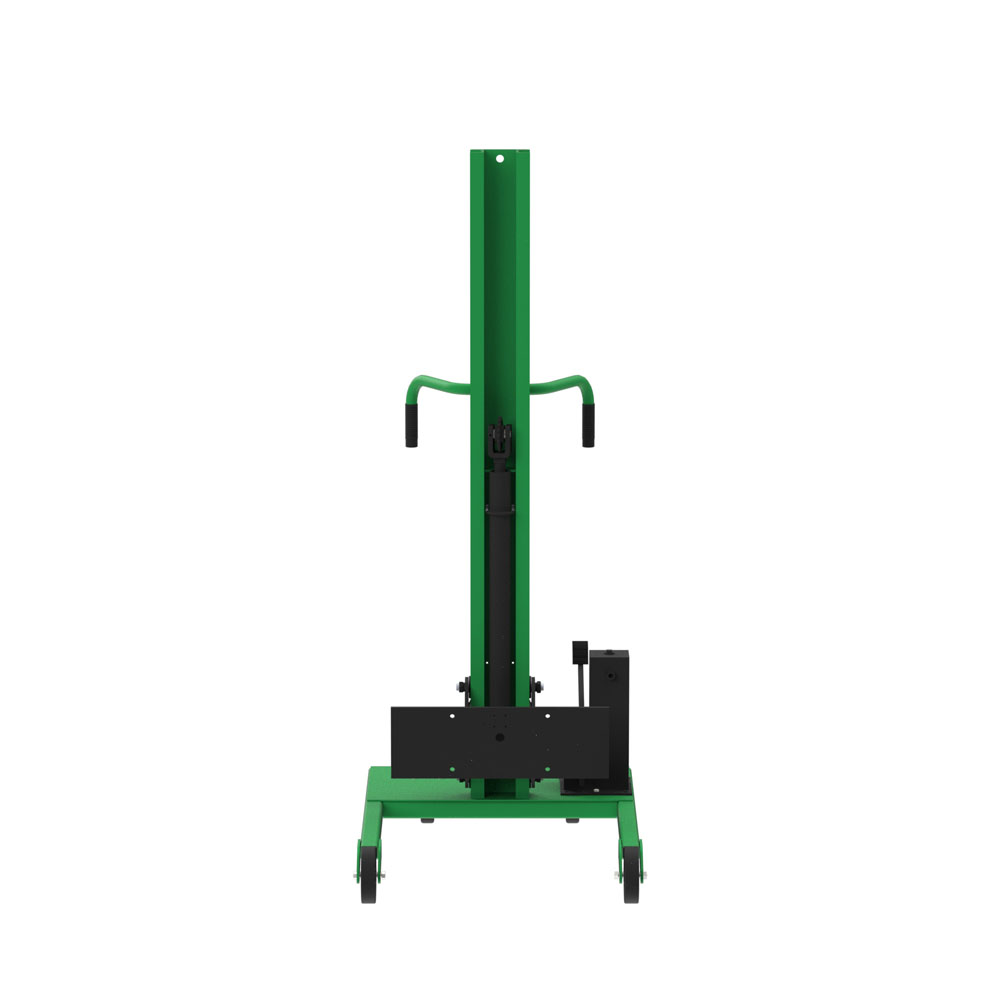

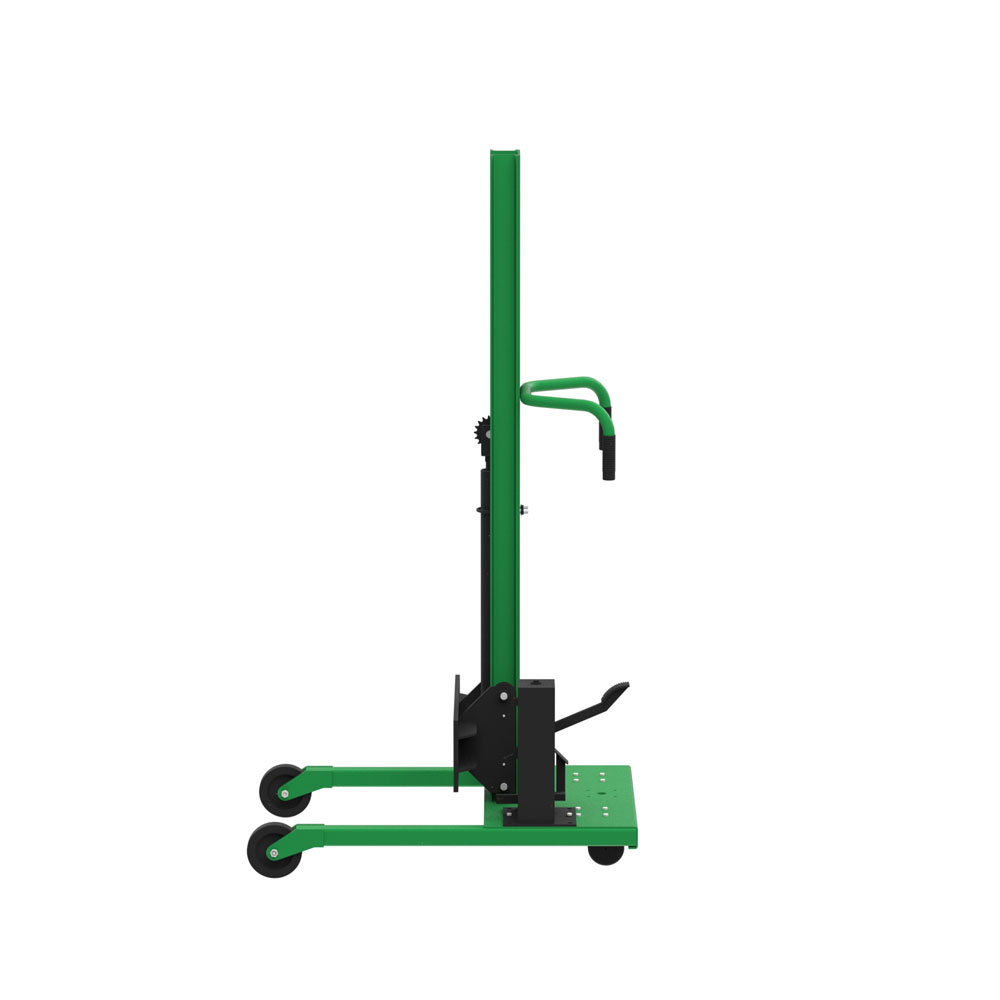

Valley Craft’s Manual Steel Universal Lift & Stacker is the perfect solution to handle all your material handling needs with just one base unit. The base unit comes with a flexible mount that works with a variety of optional accessory attachments. Platforms, forks, and a variety of drum handling attachments can all easily be connected to the unit for simple operation. All accessories are interchangeable so you can use one unit for a variety of applications by purchasing different attachments and simply switch out attachments as needed.
The manual lift raises to a height of 71” or 84" less than 30 seconds. The heavy duty wheels provide simple maneuvering and a 800 lb. capacity. The straddle legs provides additional stability and make the unit lighter and easier to maneuver around. Designed as a standalone lift, forklift assistance is not required.
Valley Craft’s Steel Universal Lifts & Stackers are built to last utilizing heavy gauge material with a premium powder coat paint finish in green. Products are shipped fully assembled, and made in the U.S.A.
- Safely and ergonomically lift and/or rotate a variety of materials throughout facility.
- Solves a variety of material handling needs with one base unit.
- Base unit works with a variety of optional attachments.
- Standalone unit (no forklift required).
- Manual lift and drive.
- Lift using ergonomic foot pump.
- Raise material to a maximum height of 71" or 84” off the floor.
- Minimum center grip height of 13” off the floor.
- Straddle legs extend under pallets, shelving, or on outside of drums.
- Compatible with interchangeable platform, forks, and drum attachments.
- Manuevers easily on (2) 6″ front and (2) 4″ rear casters: front rigid, rear swivel.
- 800 lb. capacity.
- Heavy gauge steel construction.
- Premium powder coat paint finish in green.
- Accessory options include: drum grip, drum beak, drum rotator, drum tilter, pallet forks, and steel platform (sold separately). Backplate makes attachments interchangeable.
- Ships fully assembled, ready to use.
- Made in the U.S.A.
Product details
Model # = F88567B5
