Semi-Powered Universal Lifters & Stackers

Ship Weight (lbs.) - 387
Freight Class: 175
Shipping Time - 10 Days

$4,732.00
 Reviews

Choose Model From Dropdown List


Model Style Power Source Capacity (lbs.) Lift
Height
Wheels  Dimensions Weight (lbs.)

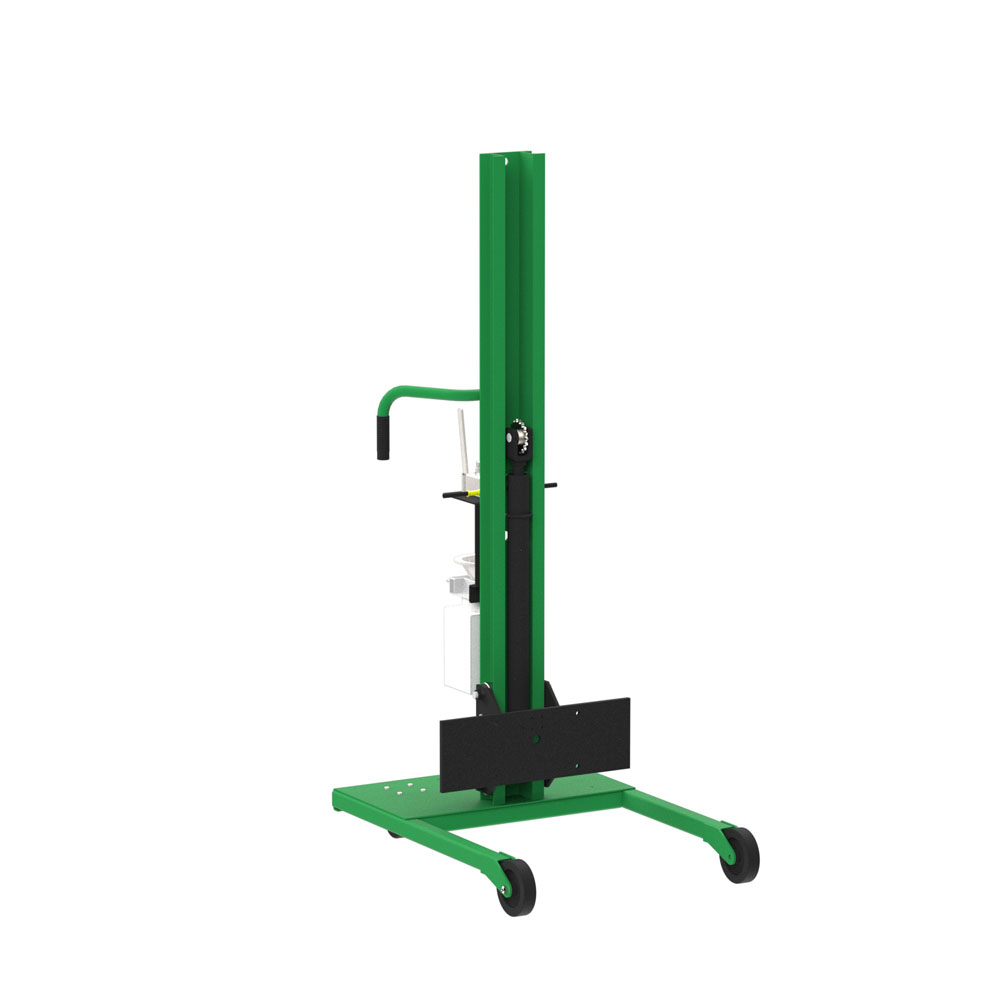

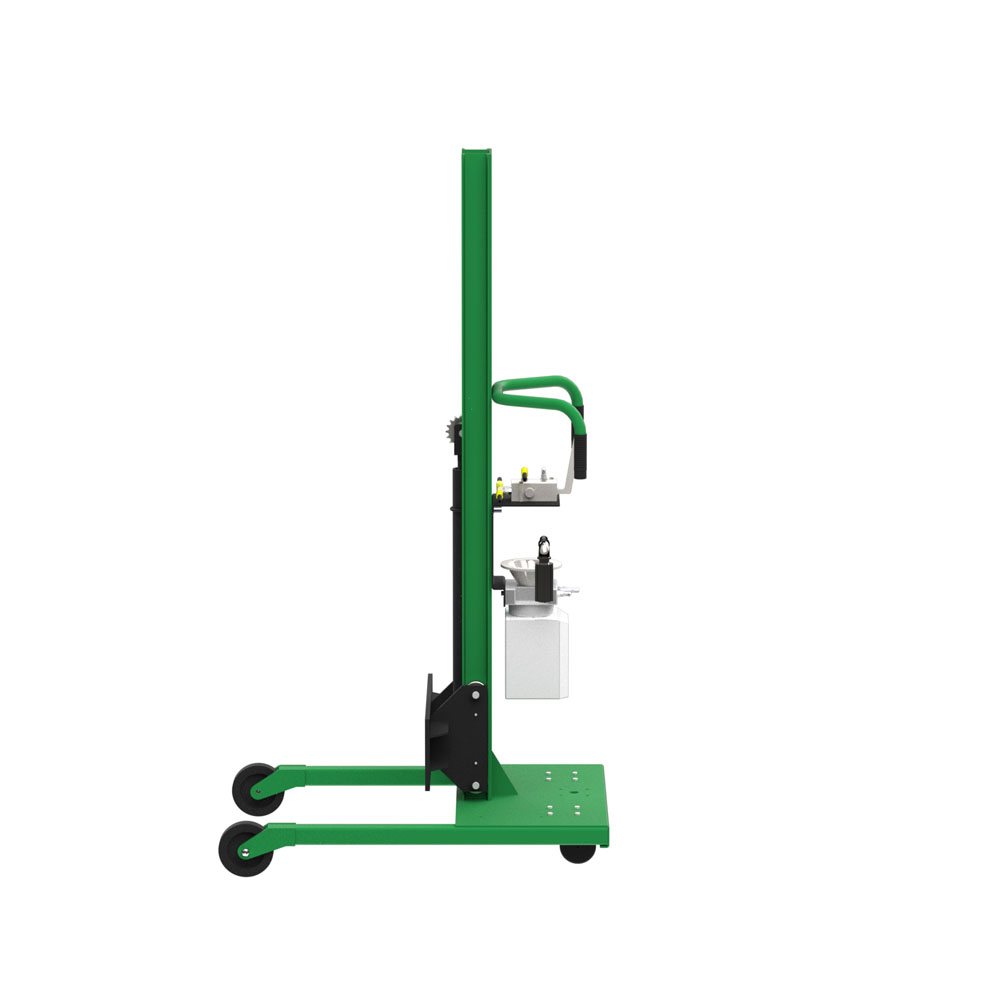

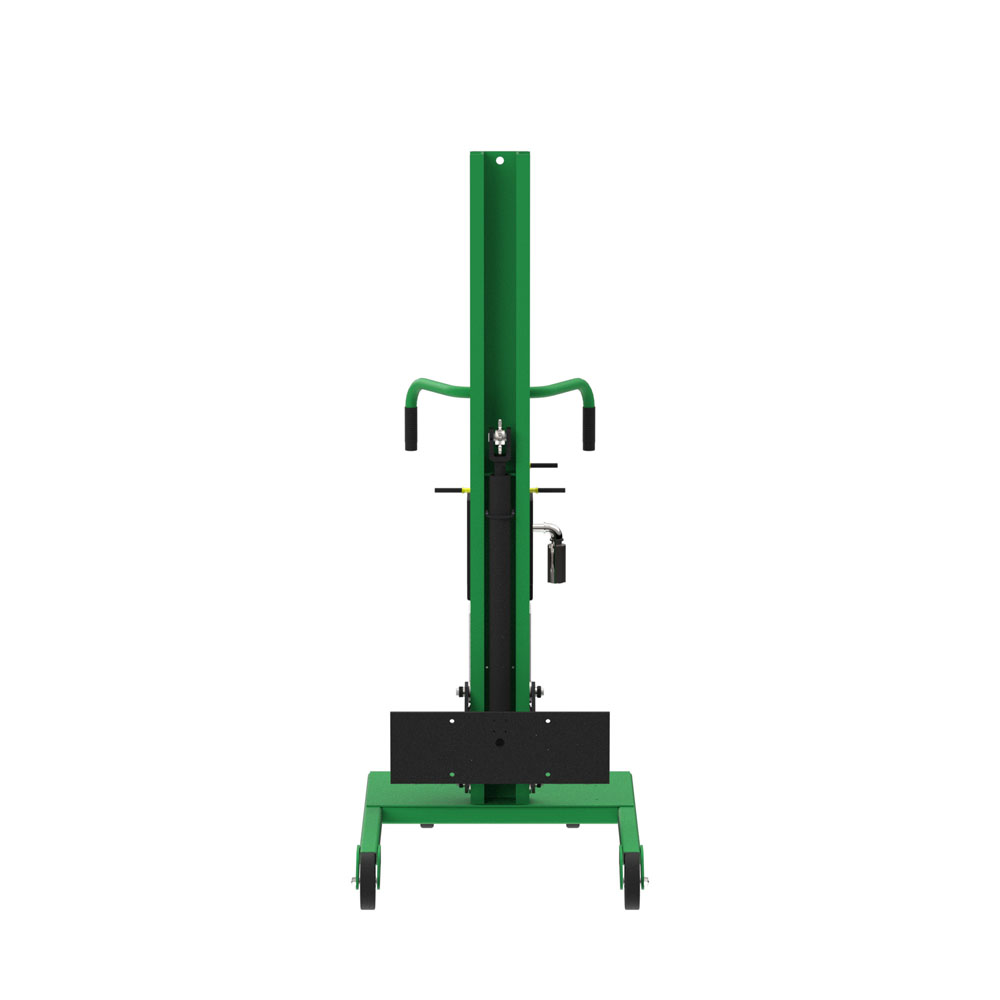

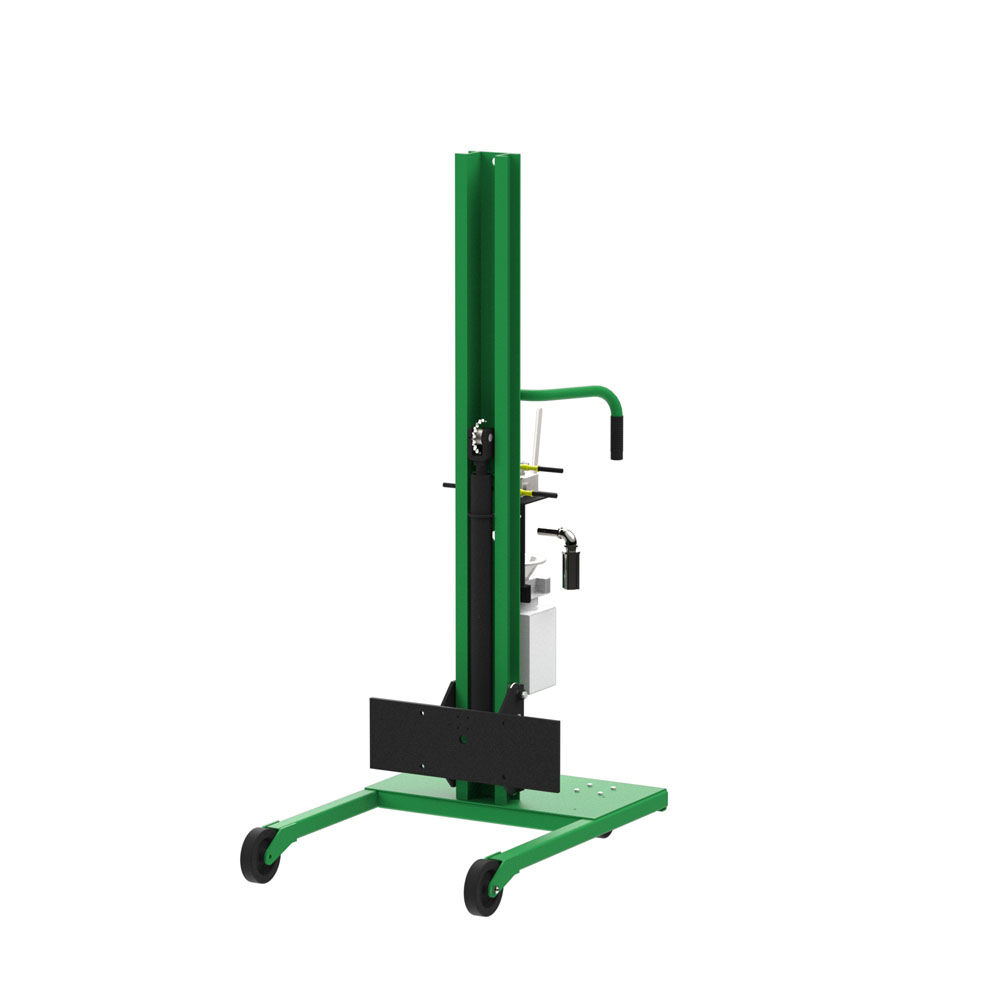

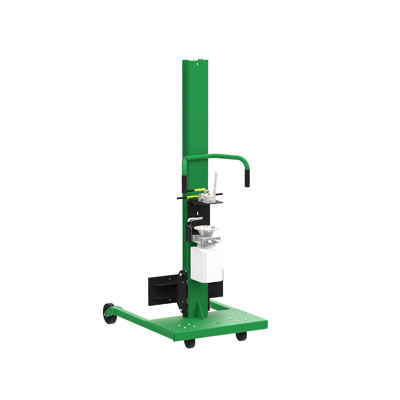

F87022B6 Semi
Powered,
Straddle
Base
Manual Drive & Pneumatic
Air Line Lift
800 71" (2) 6" Front Rigid &
(2) 4" Rear Swivel
43"W x 30"D x 78"H 355
F87040B4 84" 43"W x 30"D x 90"H 380

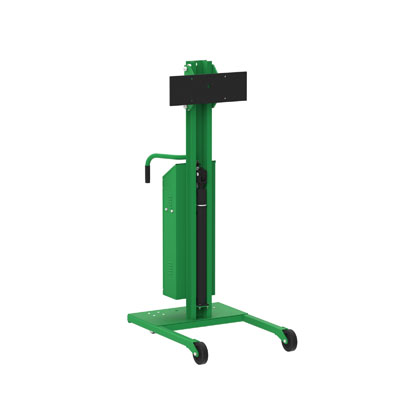

F88553C1 Manual Drive & 12V Battery
Rechargeable Lift
71" 43"W x 30"D x 78"H 465
F88561C1 84" 43"W x 30"D x 90"H 490

Valley Craft’s 90" & 78” Semi-Powered Steel Universal Lift & Stacker is the perfect solution to handle all your material handling needs with just one base unit. The base unit comes with a flexible mount that works with a variety of optional accessory attachments. Platforms, forks, and a variety of drum handling attachments can all easily be connected to the unit for simple operation. All accessories are interchangeable so you can use one unit for a variety of applications by purchasing different attachments and simply switch out attachments as needed.

The powered lift raises to a height of 84" or 71” less than 30 seconds. The heavy duty wheels provide simple maneuvering and a 800 lb. capacity. The semi-powered design has a manual easy push drive, and a powered lifting/lowering system built in. The straddle legs provides additional stability and make the unit lighter and easier to maneuver around. Designed as a standalone lift, forklift assistance is not required.

Valley Craft’s Steel Universal Lifts & Stackers are built to last utilizing heavy gauge material with a premium powder coat paint finish in green. Products are shipped fully assembled, and made in the U.S.A.

  • Safely and ergonomically lift and/or rotate a variety of materials throughout facility.
  • Solves a variety of material handling needs with one base unit.
  • Base unit works with a variety of optional attachments.
  • Standalone unit (no forklift required).
  • Pneumatic or 12V battery powered lift, manual drive.
  • Pneumatic power source for spark resistant environments (air power source required).
  • Raise material to a maximum height of 84" or 71" off the floor.
  • Minimum center grip height of 13" off the floor.
  • Straddle legs extend under pallets, shelving, or on outside of drums.
  • Compatible with interchangeable platform, forks, and drum attachments.
  • Manuevers easily on (2) 6" front and (2) 4" rear casters: front rigid, rear swivel.
  • 800 lb. capacity.
  • Heavy gauge steel construction.
  • Premium powder coat paint finish in green.
  • Accessory options include: drum grip, drum beak, drum rotator, drum tilter, pallet forks, and steel platform (sold separately). Backplate makes attachments interchangeable.
  • Ships fully assembled, ready to use.
  • Made in the U.S.A.

Product details

Model # = F87022B6

Weight
Width
Depth
387
43"
30"
Height
Adjustable Height
Freight Class
78"
No
175
Quick Ship
Ships Assembled
Material
No
Yes
-
Total Capacity
Shelf Capacity
Number of Fixed Shelves
800lbs
-
-
Number of Adjustable Shelves
Number of Doors
Manual Close or Self Close Doors
-
-
-
Number of Bins
Pegboard Included
Loubvered Panel Included
-
-
-
Number of Drawers
Optional Drawers
Legal or Letter Size Drawers
-
No
-
Option to Add Casters
Caster Material
Caster Brakes
Yes
(2) 6" Front Rigid & (2) 4" Rear Rigid
No
Floor Lock
Handle Type
Country of Origin
No
-
USA
