Drum Clamp & Rotate Powered Forklift Attachment, Hydra Grip

Ship Weight (lbs.) - 626
Freight Class: 85
Shipping Time - 7 Days

$7,099.00
 Reviews

Choose Model From Dropdown List


Model Style Power Source Dump Angle Rotate Capacity (lbs.) Jaw & Pocket Size  Dimensions Weight (lbs.)
F89702 Hydra Grip Auxilary hydraulics on forklift 120° 360° 2,000 15"W x 9"H
37-1/2"W x 6-1/2"D x 2-1/2"H

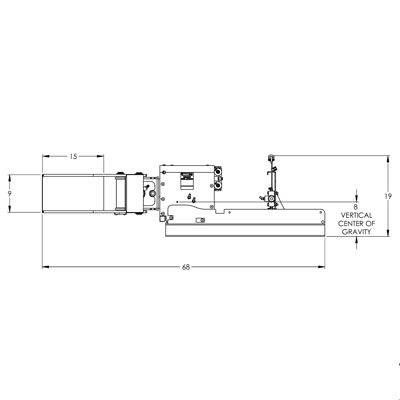

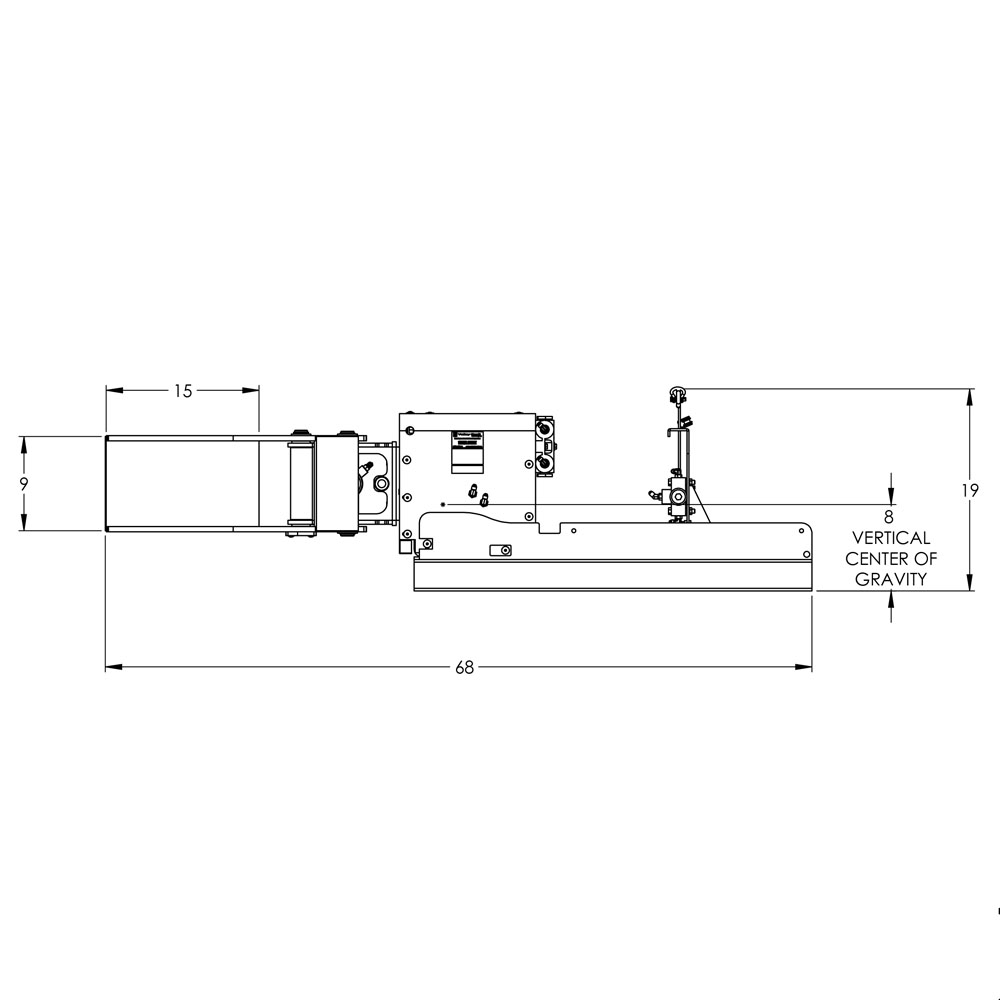

67"W x 33"D x 19"H 560

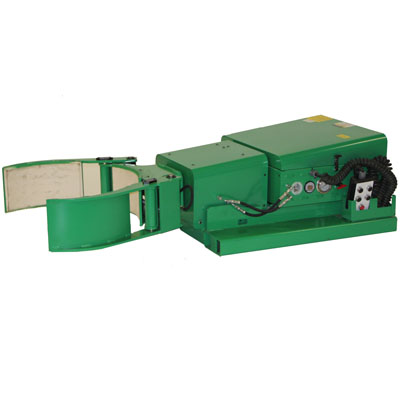

F89703 12V Battery Powered, Rechargable 67"W x 33"D x 17"H 773

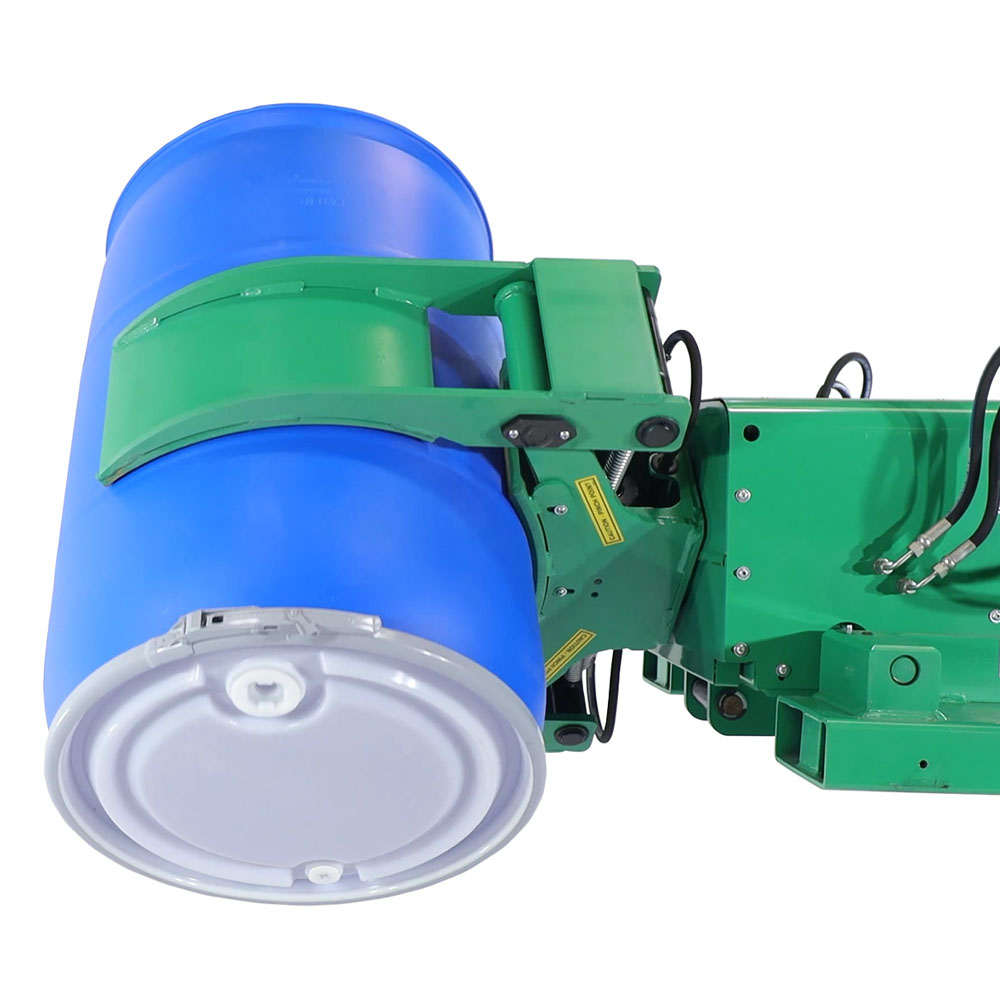

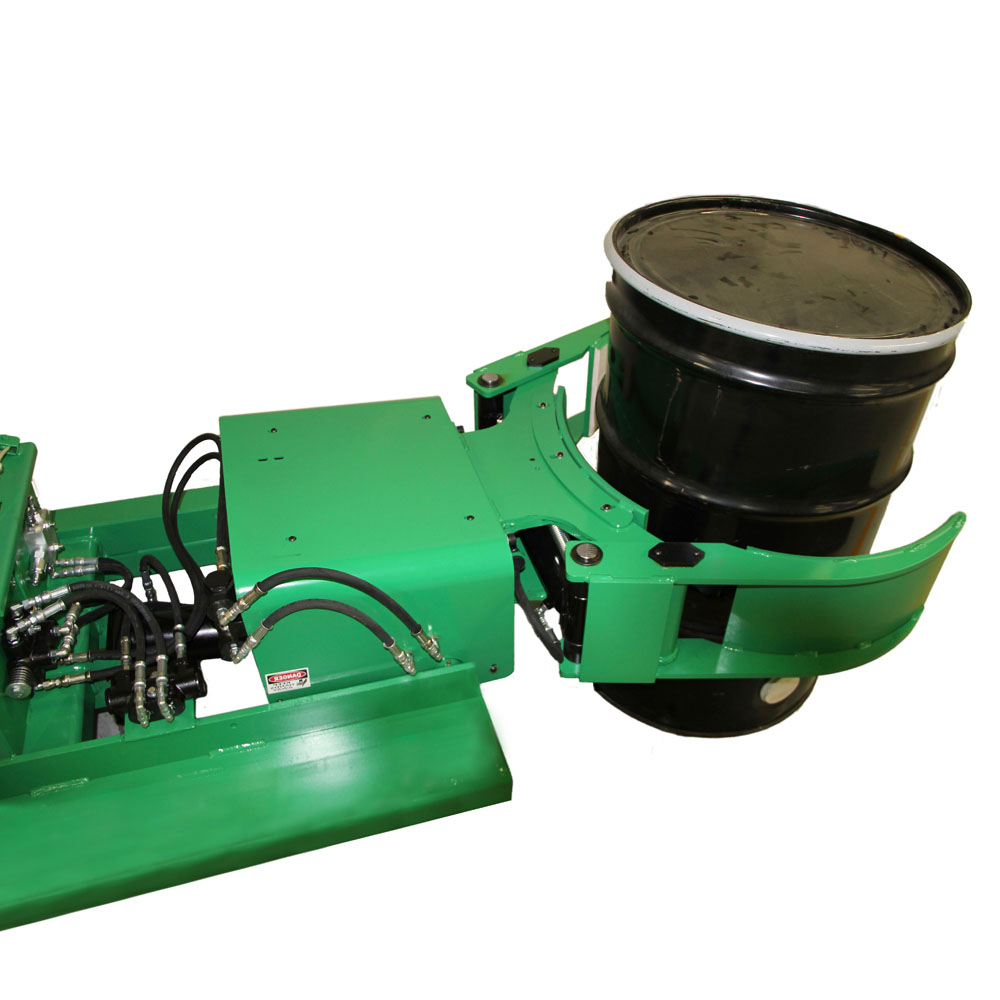

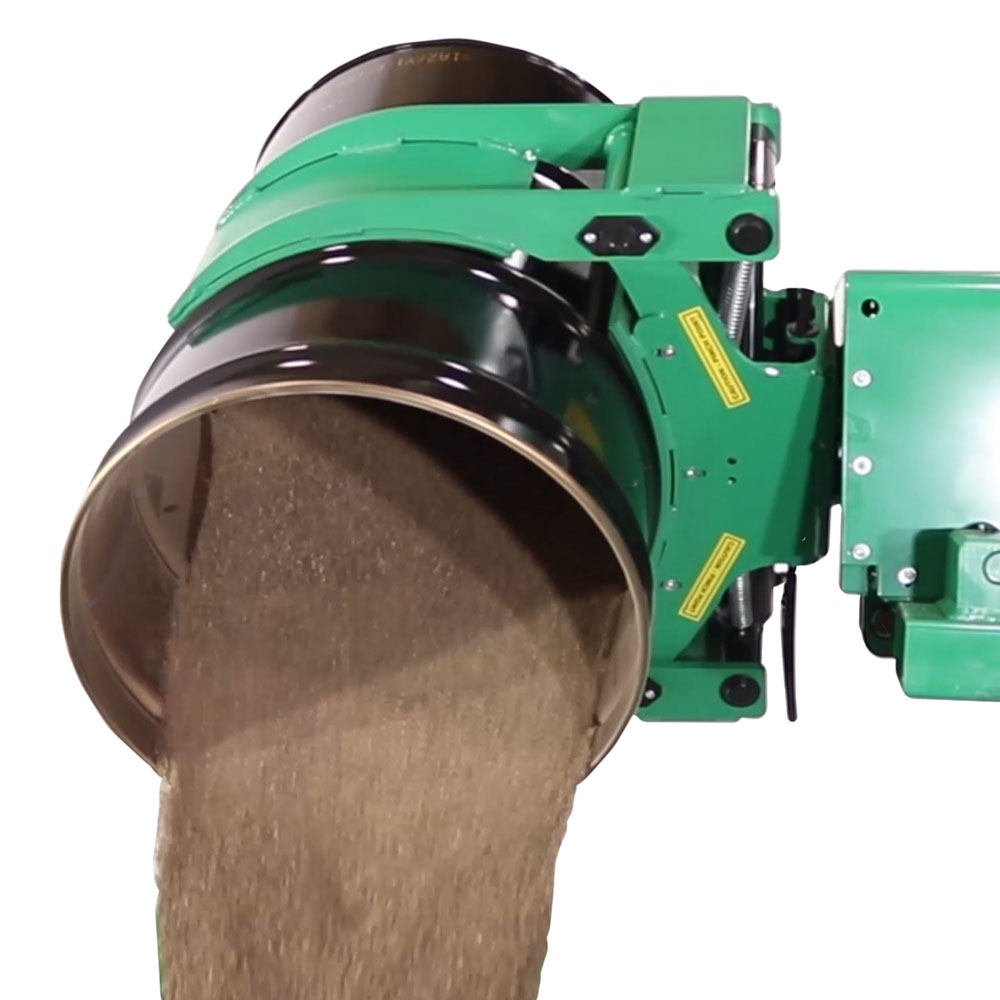

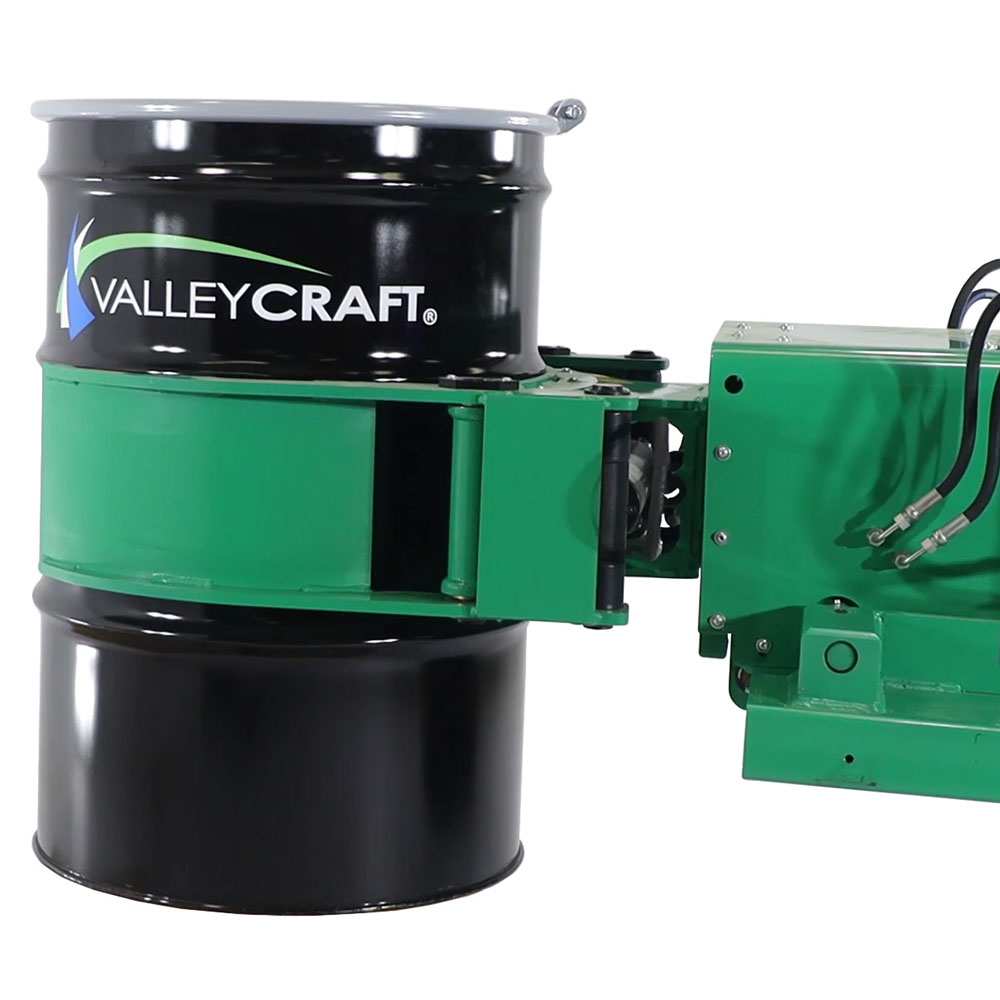

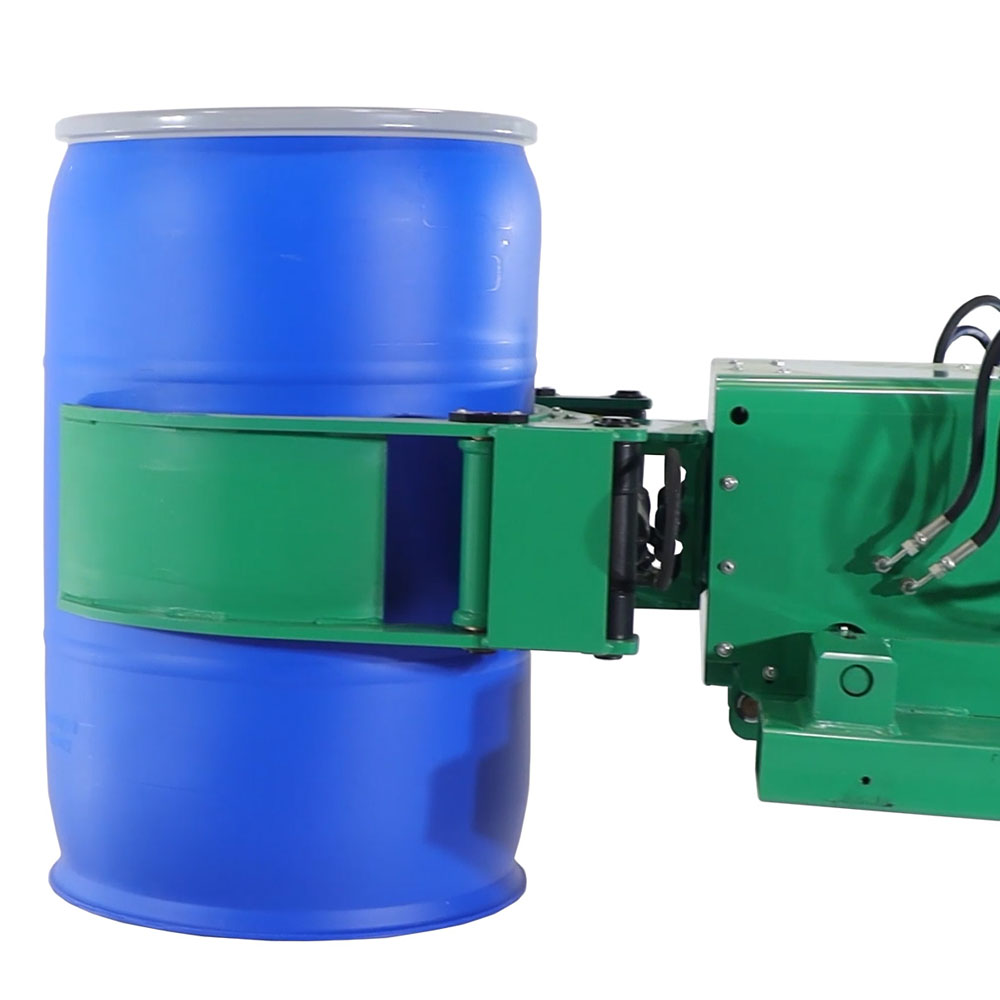

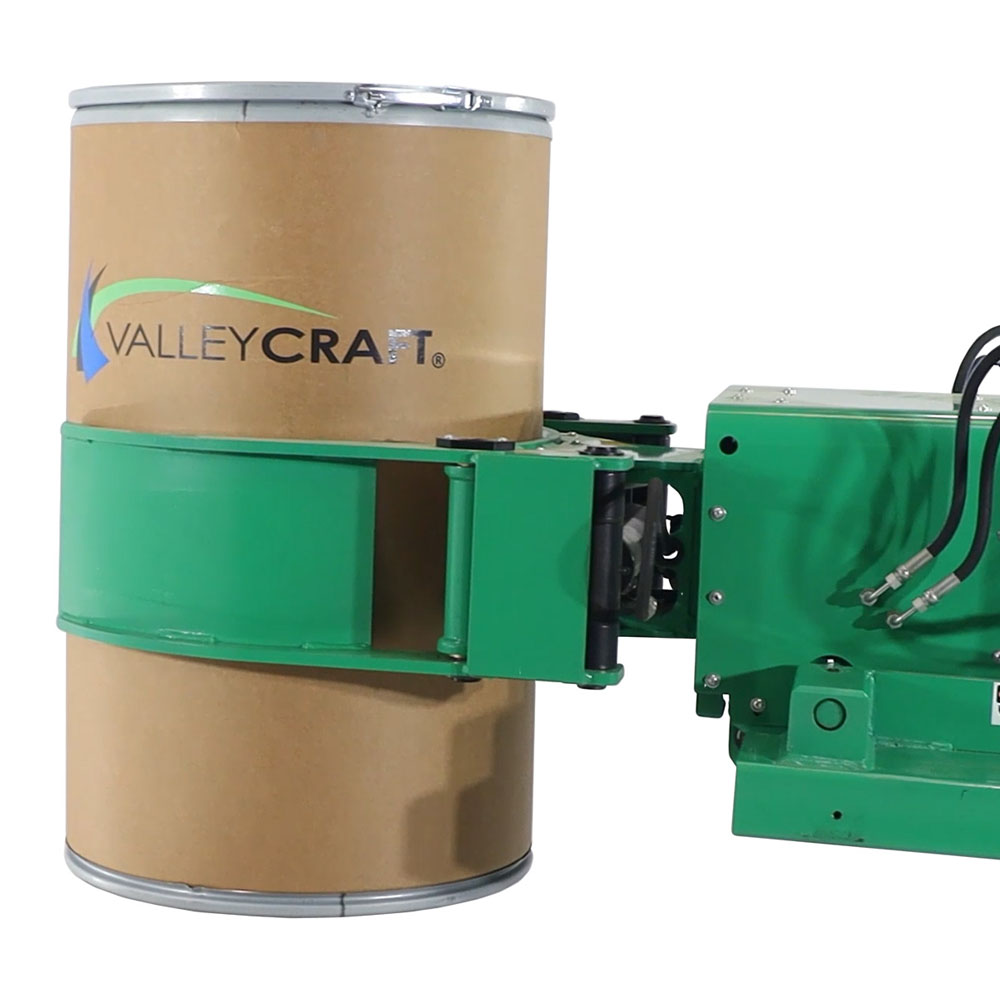

Valley Craft’s Fully Powered Drum Forklift Attachment, Hydra Grip, creates a quick, safe and ergonomically friendly means of handling drums by utilizing power. You can simply lift, rotate, dump, transport and store your drums with ease, without having to leave the seat of your forklift. Compatible with all drum styles (steel, plastic and fiber) with a diameter of 18-28” and a load capacity of 2,000 lbs., drum handling and maneuvering has never been easier. Units have hydraulic actuated jaws and an adjustable pressure gauge to help ensure the appropriate amount of pressure is applied to secure your drum without damaging it. Variable speed control improves safety and ease of operation. The Hydra Grip features a clamp & rotate, allowing units to rotate 360° continuously to assist with dumping requirements. Self-Powered or Forklift powered units are available. Self-Powered units come with (2) 12V rechargeable batteries, a battery gauge, and a built-in charger (compatible with any standard outlet and extension cord). Self-powered units work for all environments and do not require a forklift powered connection. Forklift Powered units come with auxiliary lines and quick-connect couplers to easily connect to your forklift (requires available forklift auxiliary circuit). Forklift powered units operate using convenient forklift controls and have the ability to run continuously without the need to recharge. Valley Craft’s Fully Powered Drum Forklift Attachment, Hydra Grip, improves the safety and productivity of any facility that is maneuvering drums by eliminating the need for manual assistance. Constructed of heavy gauge steel with a premium powder coat paint finish in green, you can be confident these units are built to last. All products are shipped fully assembled, ready-to-use, and are made in the U.S.A.

  • Quickly and ergonomically transport, rotate, dump and store drums without leaving the seat of your forklift.
  • Powered grip, release, and rotate (360°).
  • Hydraulic actuated jaws, with adjustable pressure gauge.
  • Variable speed control.
  • Assists facilities with OSHA compliance and LEAN initiatives.

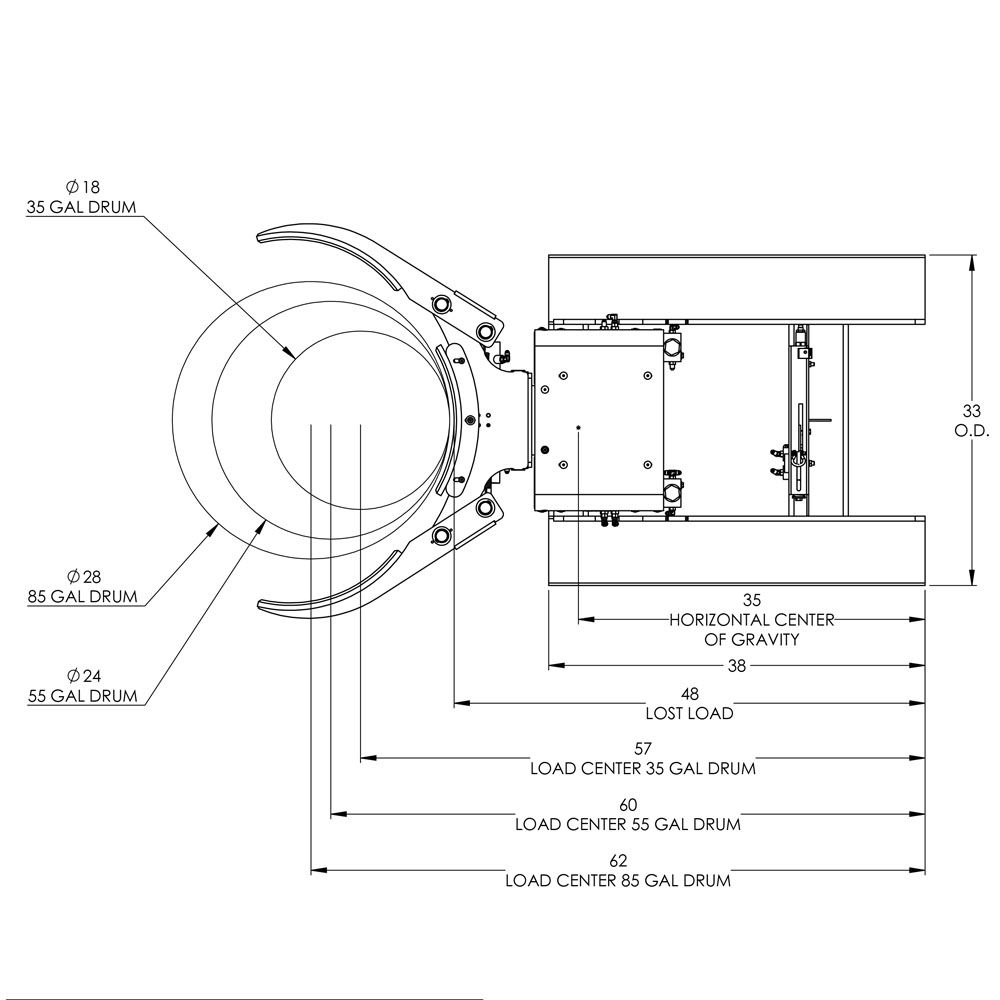

  • Compatible with steel/plastic/fiber drums, 30-85 gallons (18-28" in diameter).
  • 2,000 lb. capacity.
  • Heavy gauge steel construction.
  • Premium powder coat paint finish in green.
  • Ships fully assembled, ready to use.
  • Made in the U.S.A.

Product details

Model # = F89702

Weight
Width
Depth
626
68
33
Height
Adjustable Height
Freight Class
19"
No
85
Quick Ship
Ships Assembled
Material
No
Yes
-
Total Capacity
Shelf Capacity
Number of Fixed Shelves
2000lbs
-
-
Number of Adjustable Shelves
Number of Doors
Manual Close or Self Close Doors
-
-
-
Number of Bins
Pegboard Included
Loubvered Panel Included
-
-
-
Number of Drawers
Optional Drawers
Legal or Letter Size Drawers
-
No
-
Option to Add Casters
Caster Material
Caster Brakes
No
-
-
Floor Lock
Handle Type
Country of Origin
-
-
USA
