Model | Style | Connection | Fork Pocket Centers |
Jaw Size |
Drum Capacity | Dimensions | Weight (lbs.) |
F87398A2 | Economy | Gravity Acuated Jaws | 14" | 15"W x 2"H | 55 gal / 24" dia (800 lbs,) | 36"W x 22"D x 4"H | 53 |
F86145B0 | Industrial | 19"W x 3"H | 30-55 gal / 18" or 24" dia (1,500 lbs.) | 36"W x 24"D x 7"H | 90 | ||
F86145B0 | Deluxe | Gravity & Cam Actuated Jaws | 1 9"" - 31" | 15"W x 3"H | 30-55-85 gal / 18" - 28" dia (1,500 lbs.) | 31"W x 26-40"D x 7"H | 103 |
Fork Pocket Size - 16-3/4"W x 5-5/8"D x 1-5/8"H |

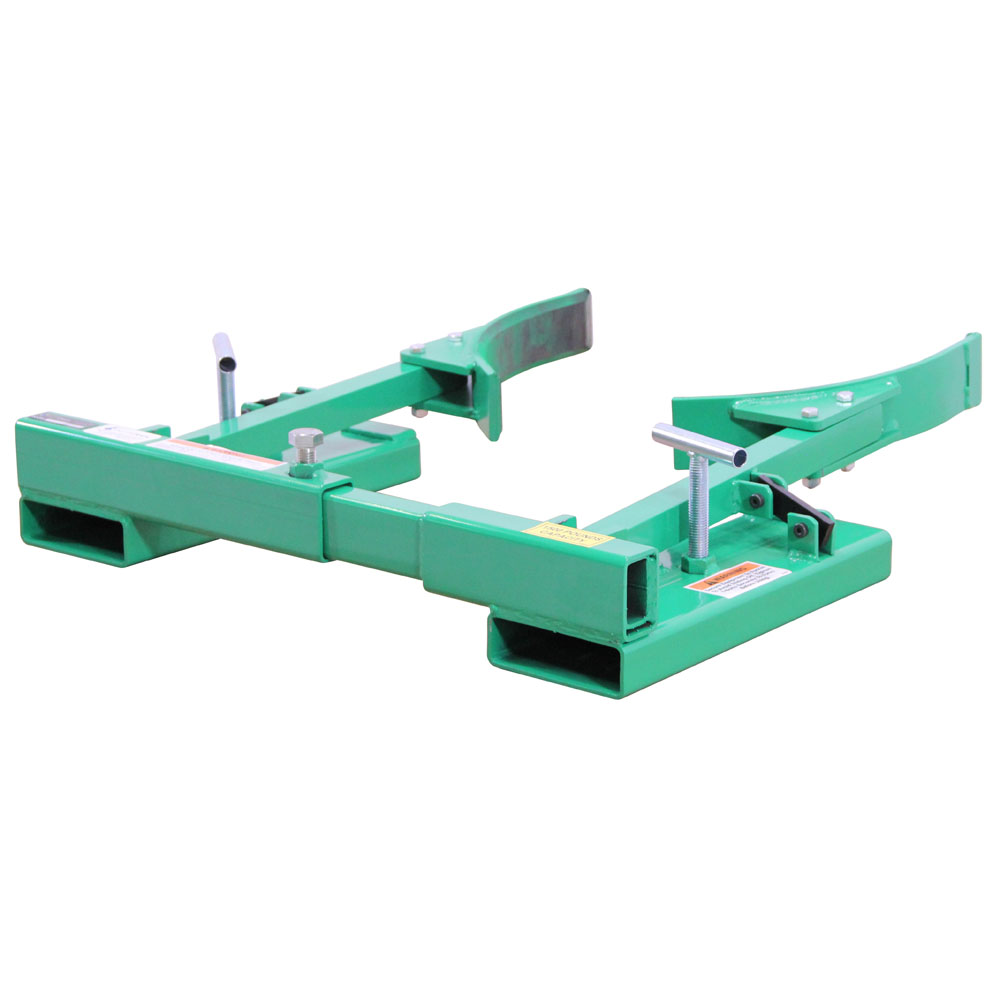

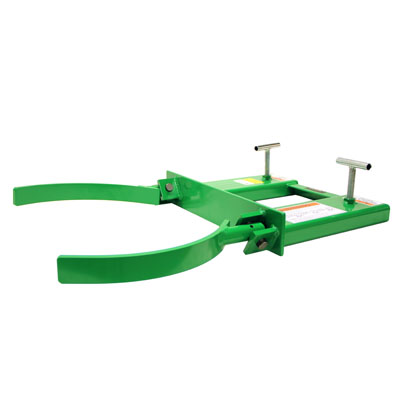

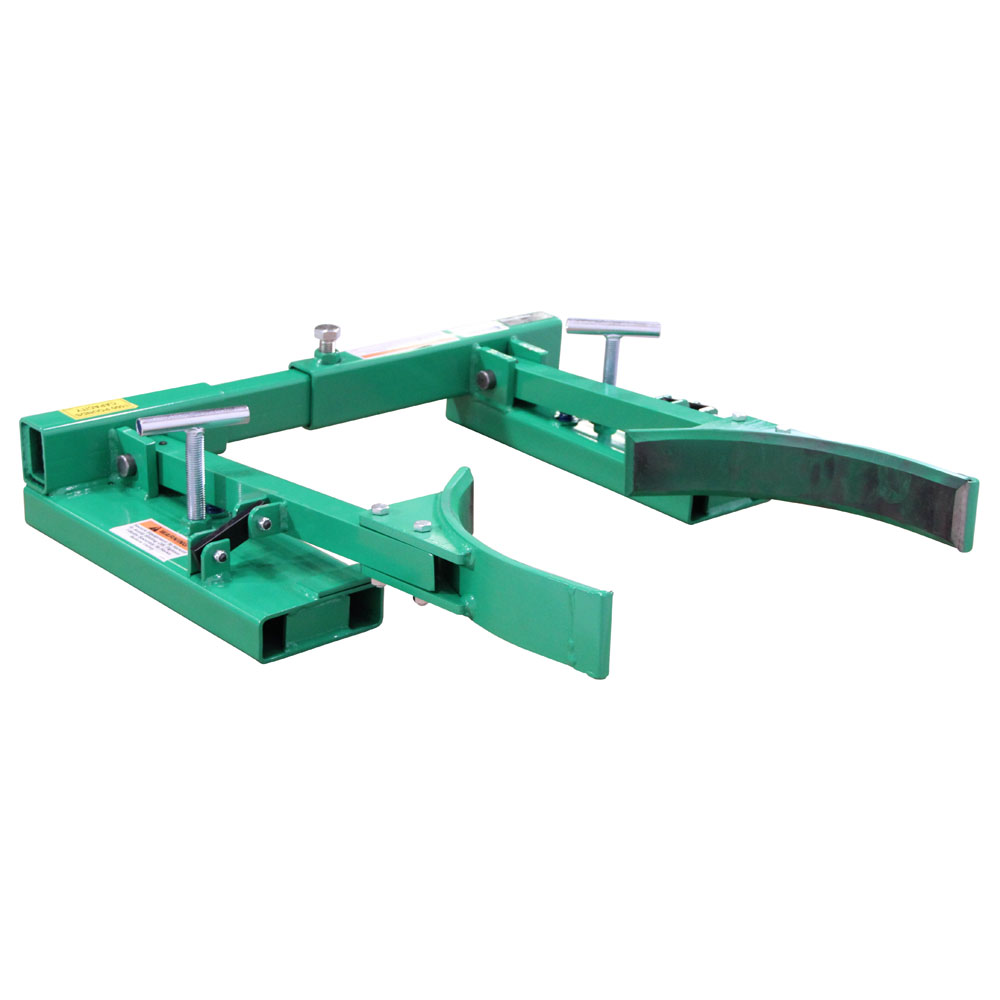

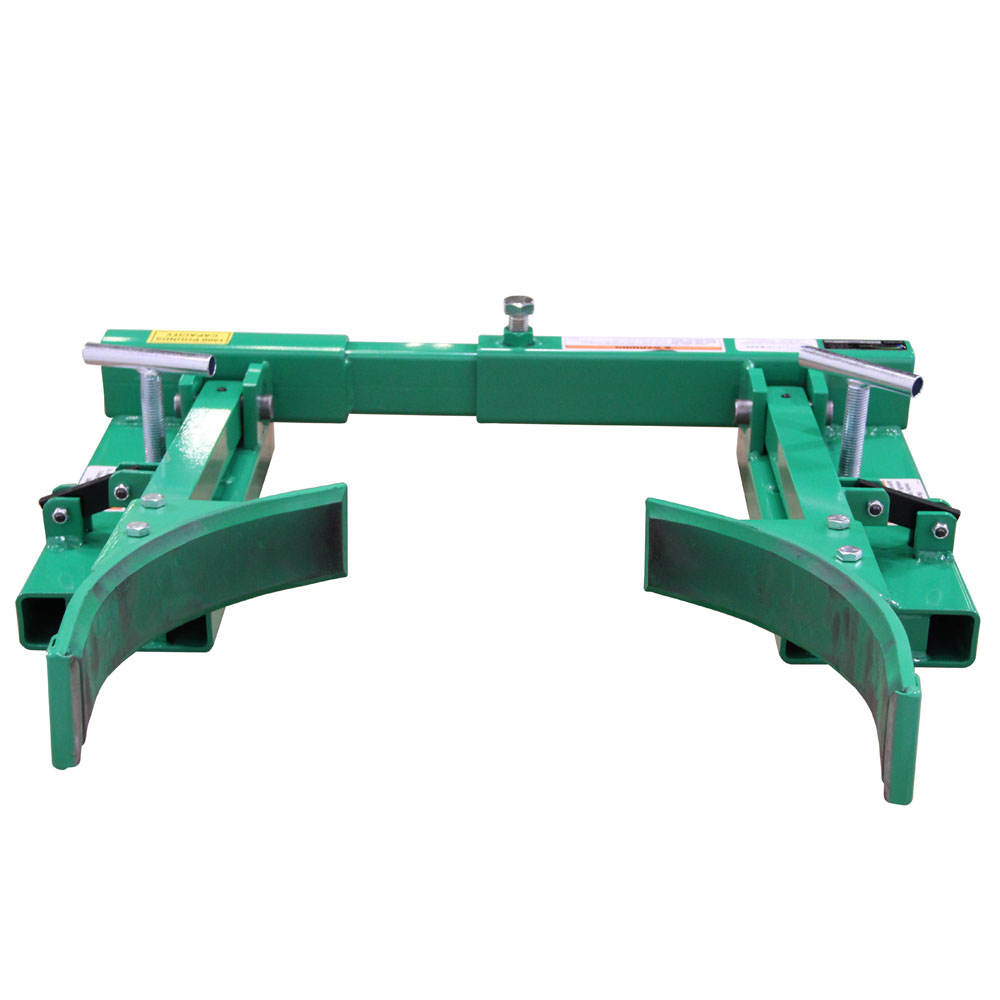

Steel Drum Forklift Attachments are offered in an economy, industrial or deluxe styles. The deluxe attachment has an adjustable guide that makes it compatible with drums and cylinders of all sizes, ranging from 18-28” in diameter. The rubber-lined jaws provide added security and protection for your drum, and has a 1,500 lb. load capacity. The industrial attachment drum capability is limited to 30 or 55 gallon drums, and the jaws are steel (not rubber-lined). The economy attachment is designed with a simplified knuckle gripping pressure system, works with 55 gallon drums, and has an 800 lb. capacity.

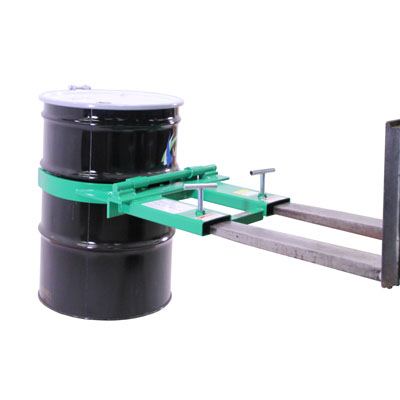

- Efficiently transport steel drums throughout your facility.

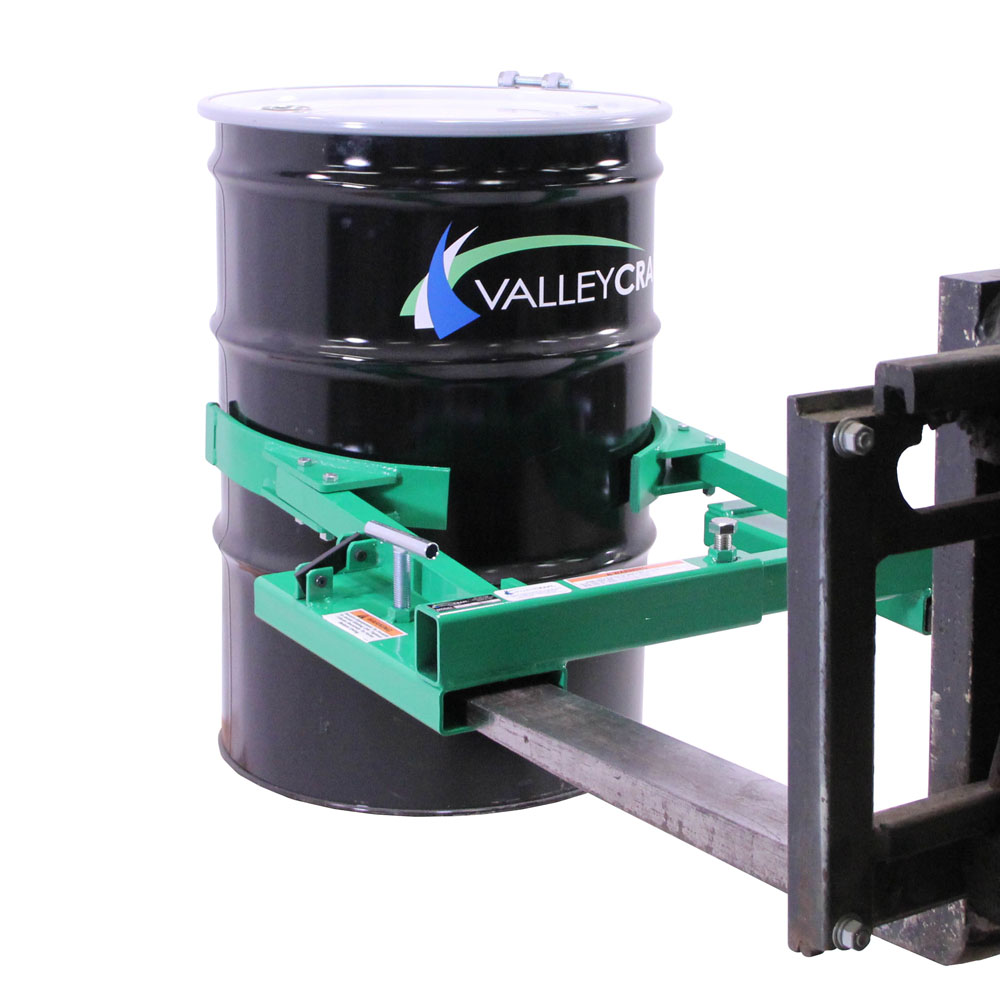

- Secure drum for transport by raising unit to snug jaws under ridge of drum.
- Release drum by lowering to floor, automatically releasing pressure on the jaws.

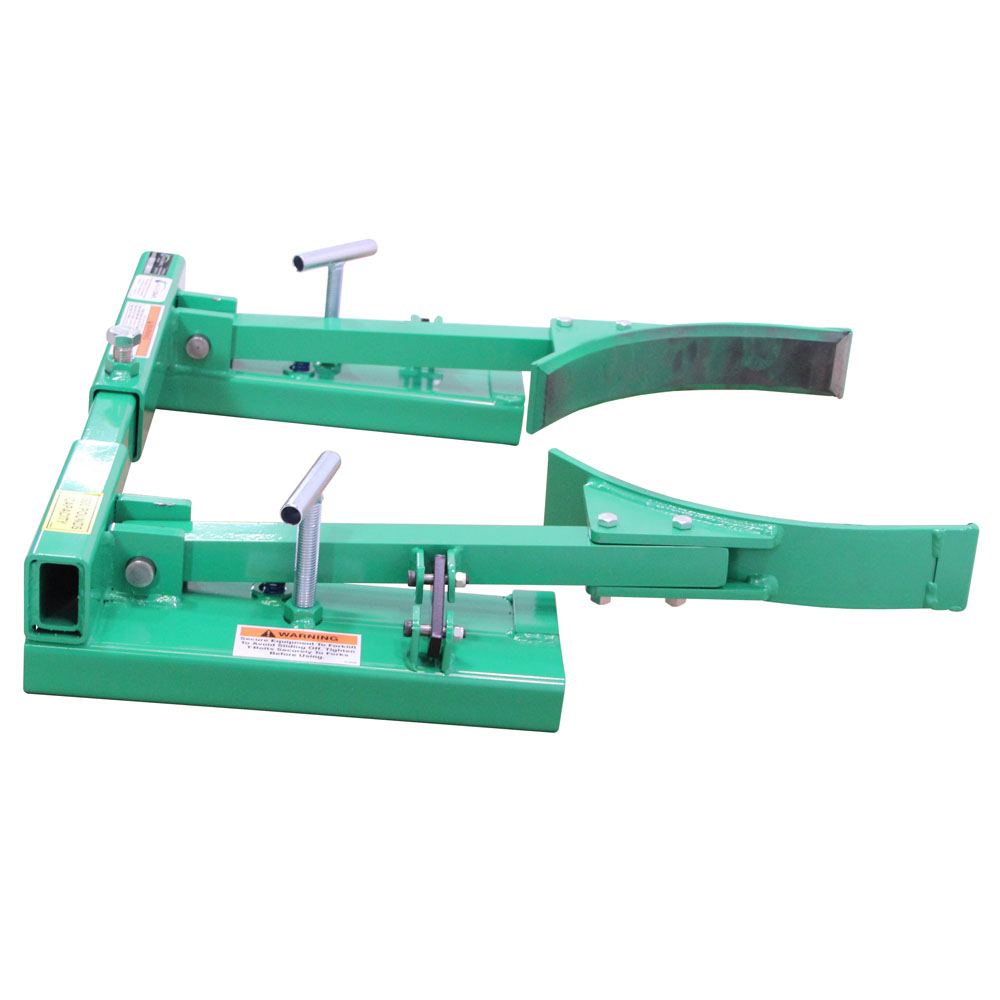

- Cam-actuated jaws secures drum automatically when lifting.

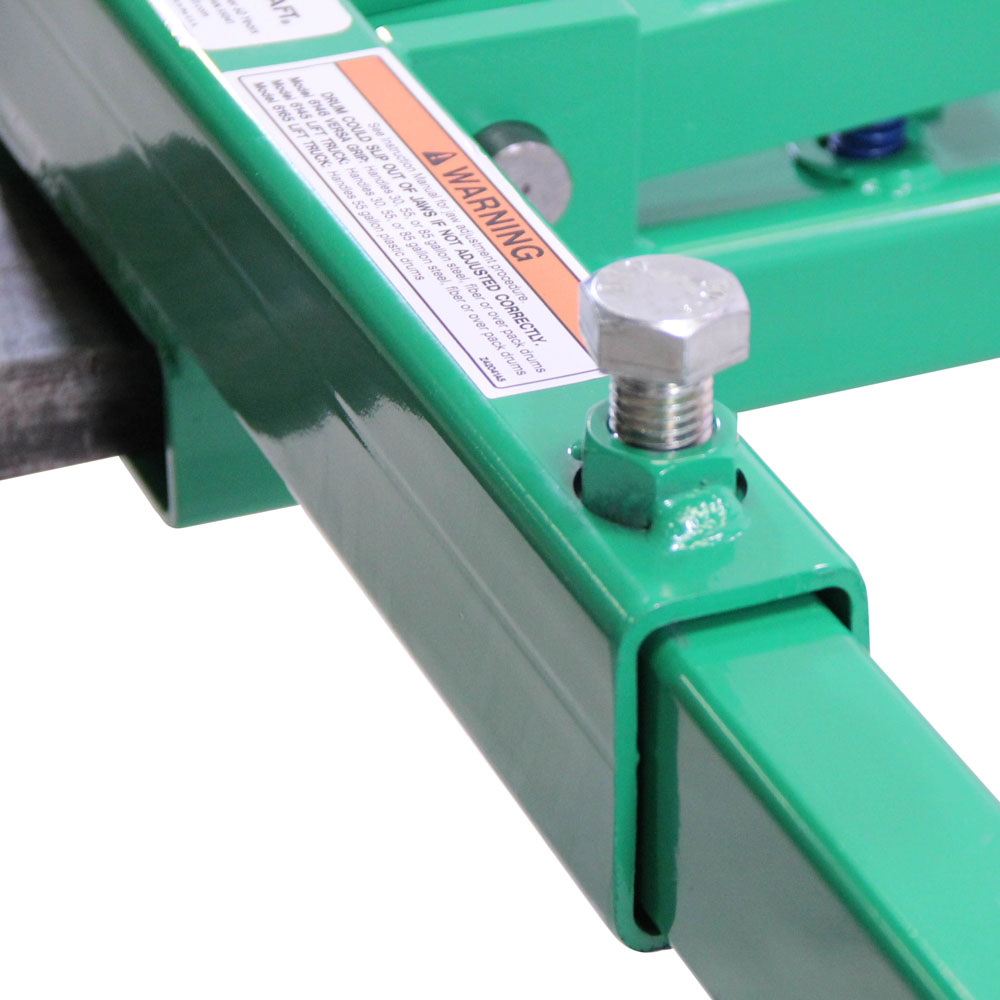

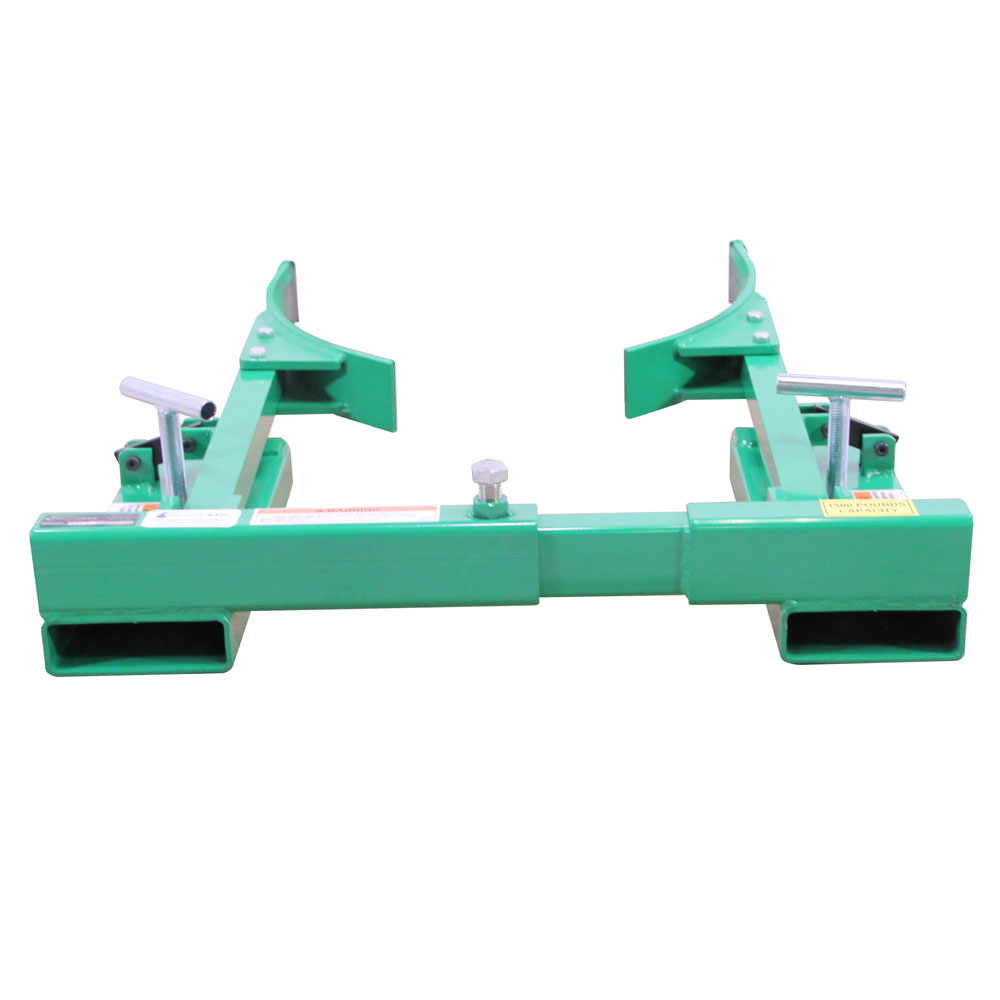

- Adjustable width slide ensures secure connection.
- Lined jaws provide superior grip.

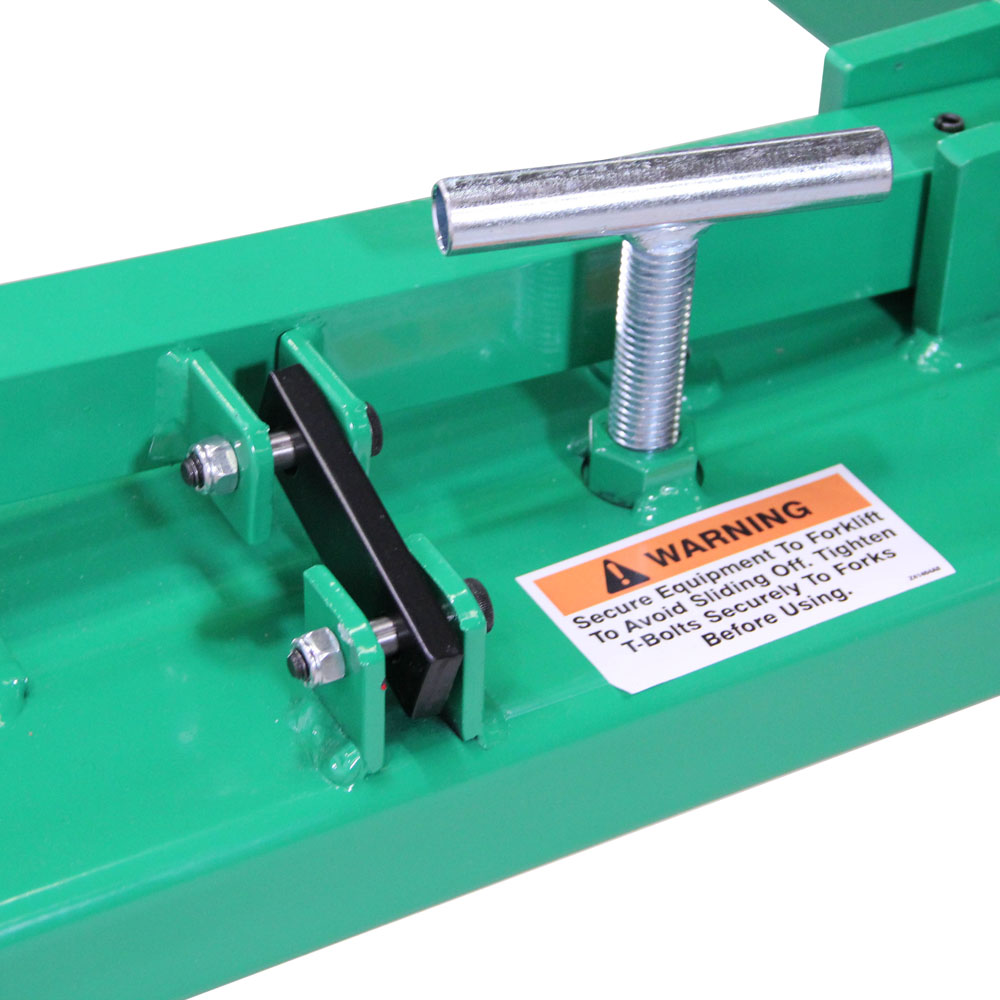

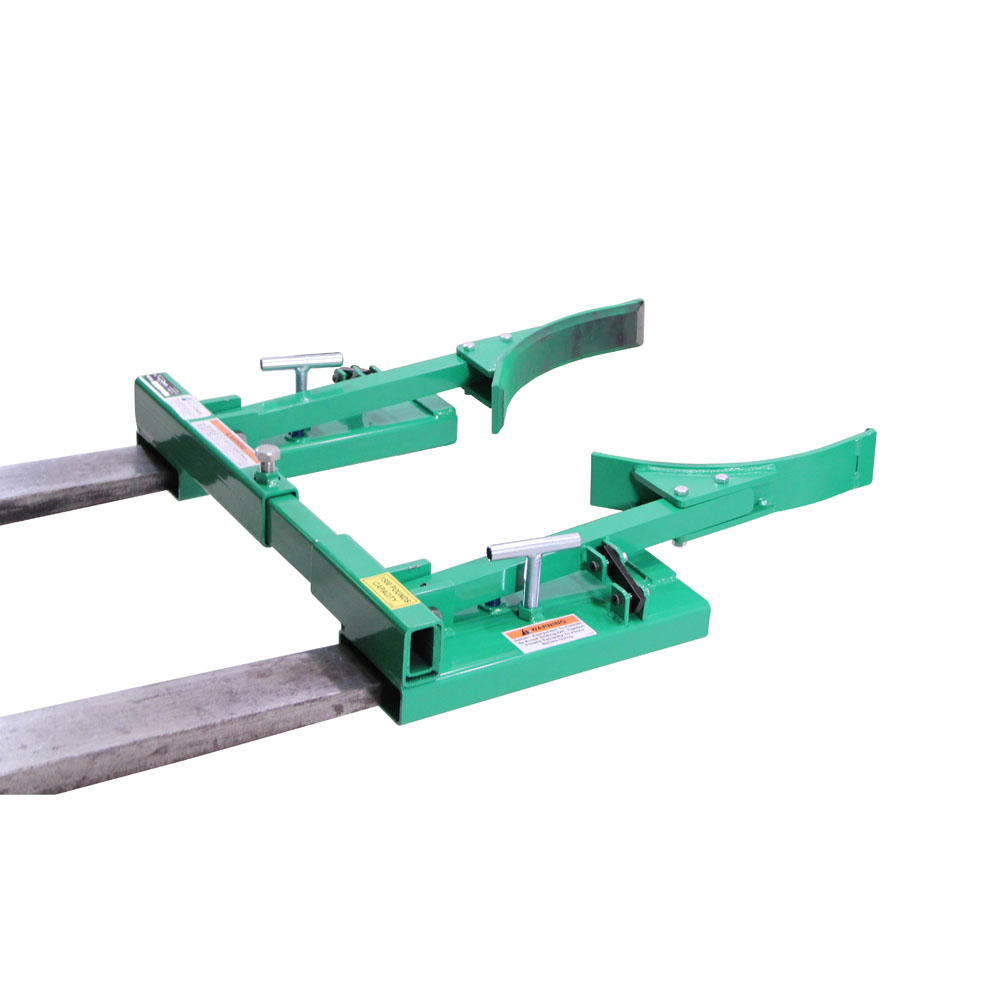

- Built-in T-bolts screw down to secure unit to forklift forks.
- Compatible with steel drums, 30-85 gallons (18-28" in diameter).

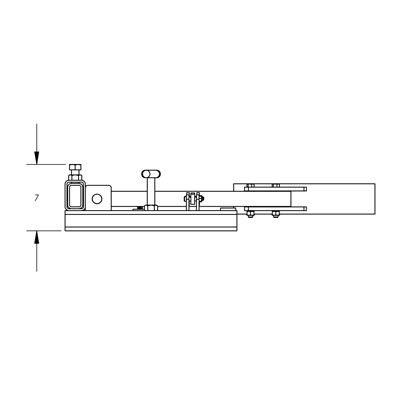

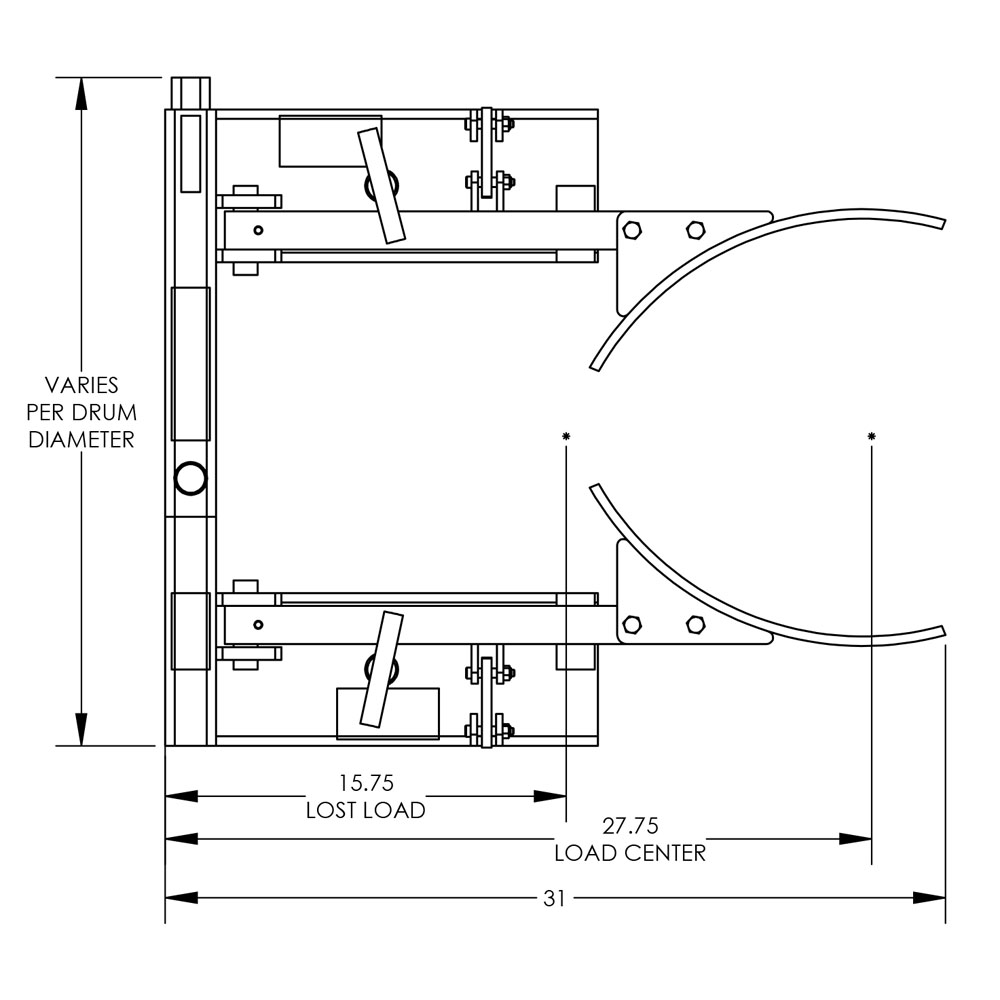

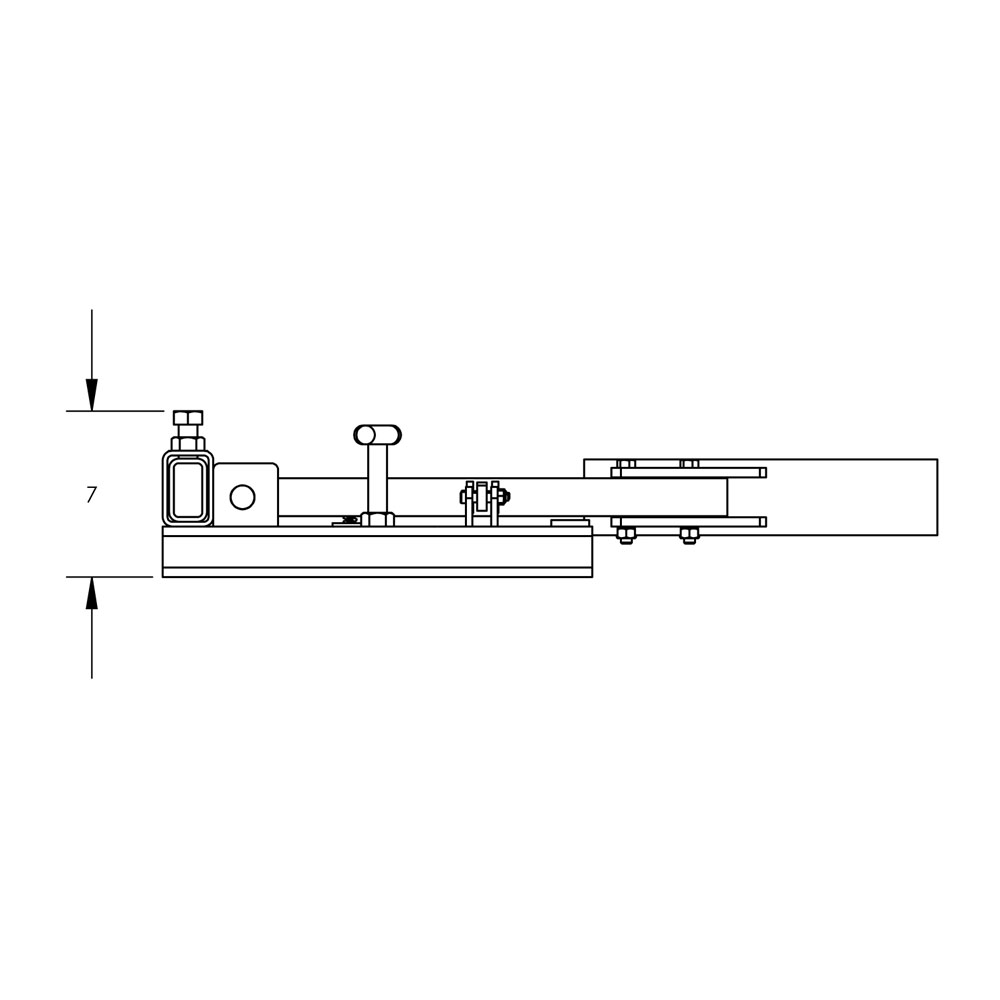

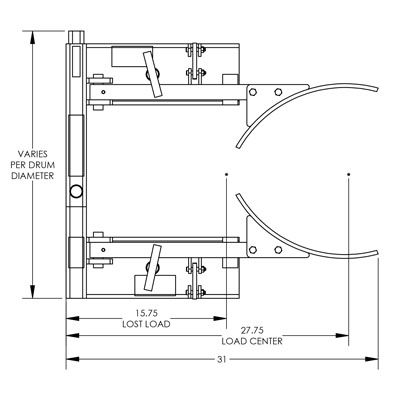

- 31"L x (26-40)"W x 7"H.
- 1,500 lb. capacity.
- Heavy gauge steel construction.
- Premium powder coat paint finish in green.
- Quick and easy assembly, hardware pack included.
- Made in the U.S.A.
Product details
Model # = F87398A2
Weight
Width
Depth
57
36
22
Height
Adjustable Height
Freight Class
4"
No
60
Quick Ship
Ships Assembled
Material
No
Yes
-
Total Capacity
Shelf Capacity
Number of Fixed Shelves
800lbs
-
-
Number of Adjustable Shelves
Number of Doors
Manual Close or Self Close Doors
-
-
-
Number of Bins
Pegboard Included
Loubvered Panel Included
-
-
-
Number of Drawers
Optional Drawers
Legal or Letter Size Drawers
-
No
-
Option to Add Casters
Caster Material
Caster Brakes
No
-
-
Floor Lock
Handle Type
Country of Origin
-
-
USA
