Model | Connection | Drum Size | Fork Pocket Size W x D x H (in) |
Dimensions W x D x H (in) |
Weight |
F80147A7 | Ratchet Straps | 30/55 | 18 x 5-5/8 x 1-5/8 | 24 x 22 x 11 | 67 |
F85370A0 | Beak Locks to Rim | 30/55/85 | 17 x 6-1/2 x 1-3/4 | 23 x 24 x 38 | 125 |
Universal Drum Forklift Attachments are compatible with all style drums (steel, plastic, and fiber), have a load capacity of 1,000 lbs., and two attachment options. The beak attachment is compatible with drums of all styles and sizes with a lipped rim, as long as the rim is 24” above the floor. The strap attachment works with cylinders and drums 14-24” diameter, employing a dual ratchet strap system for precise tension and maximum security during transport.
- Efficiently transport drums throughout your facility.

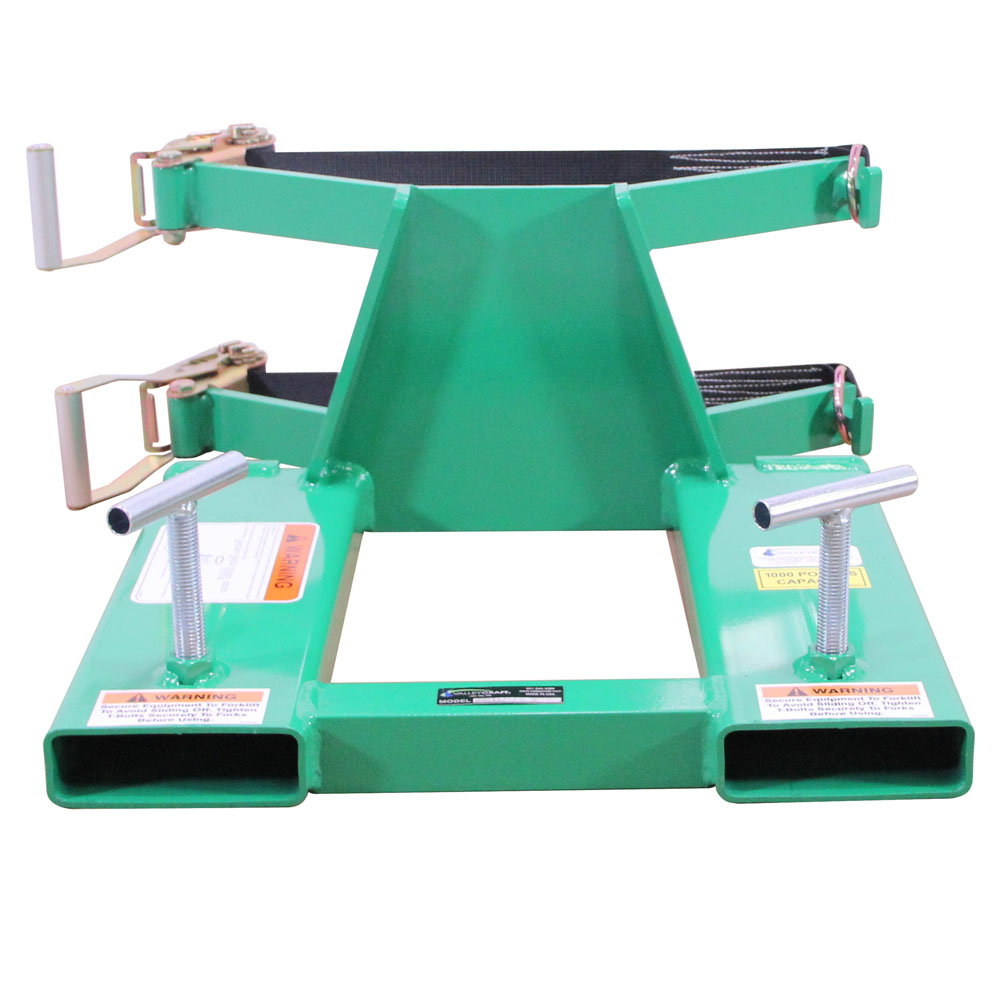

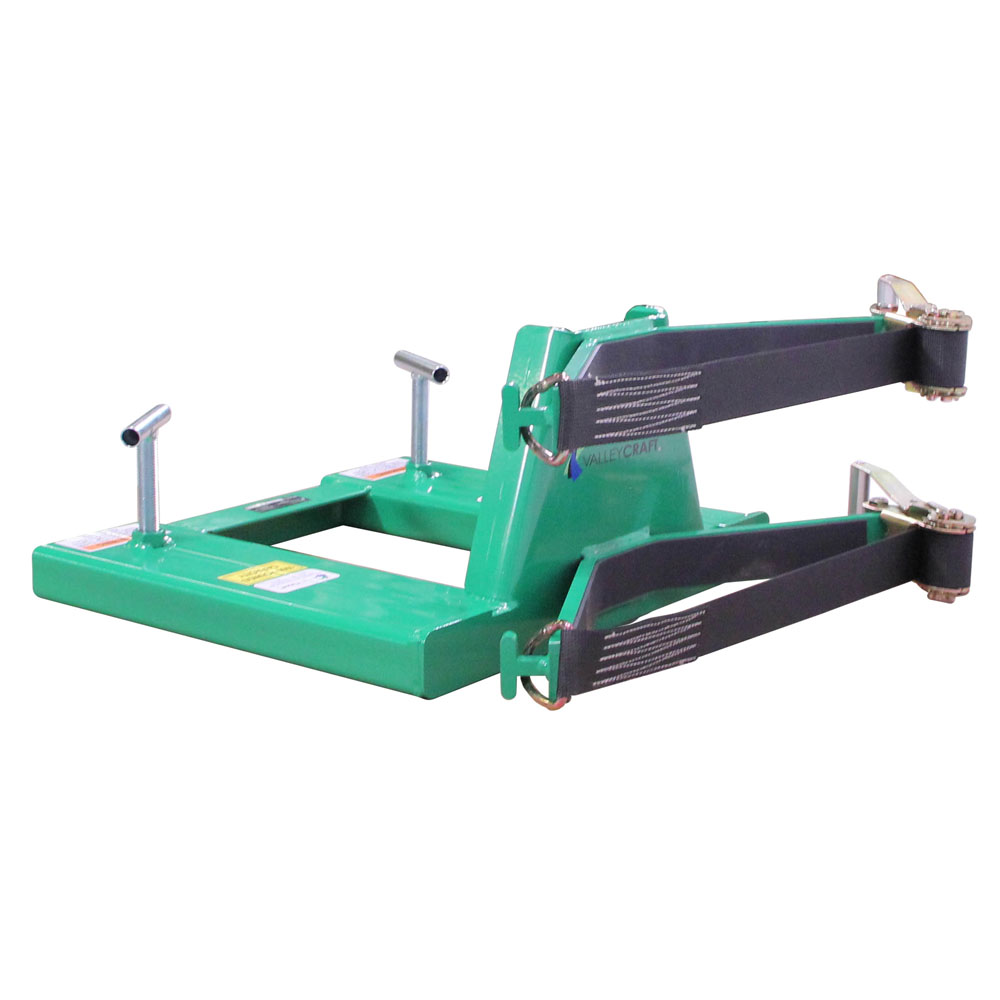

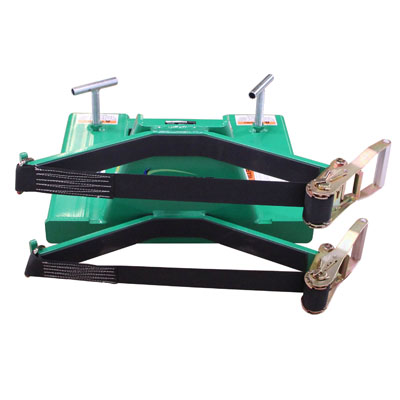

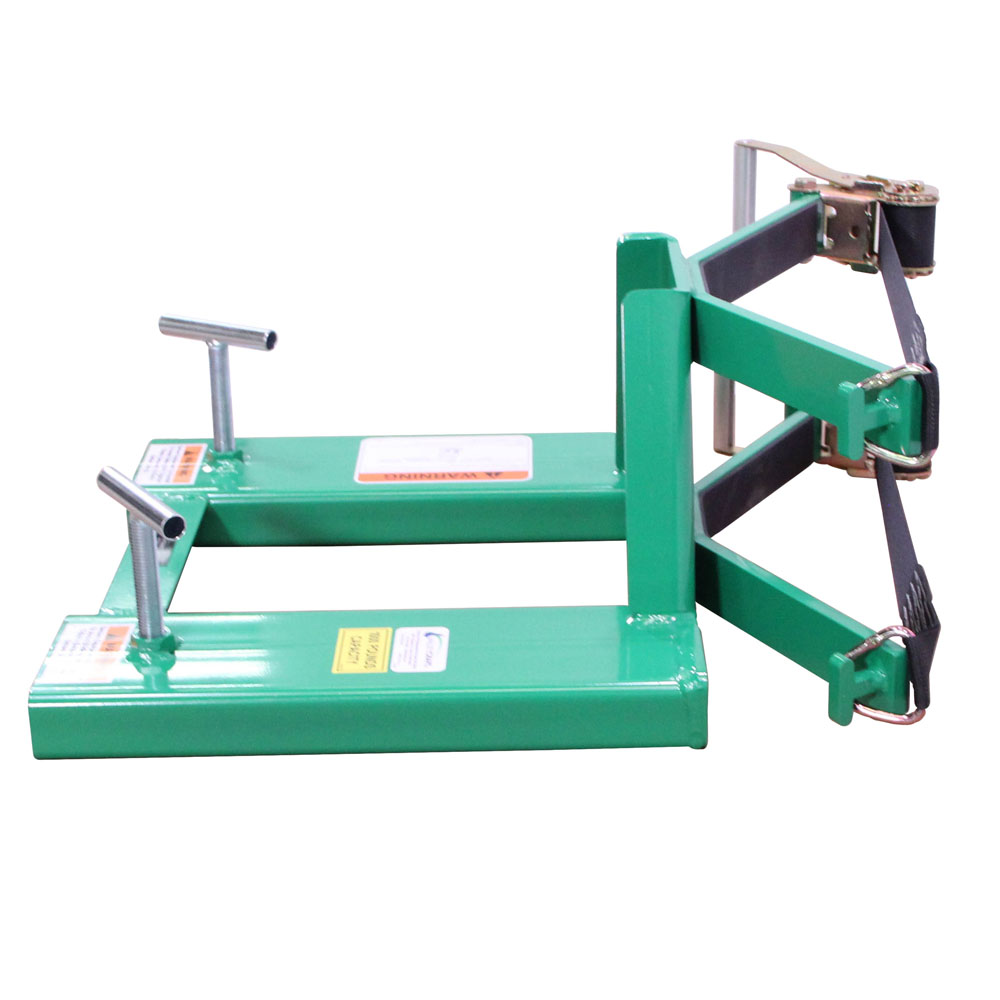

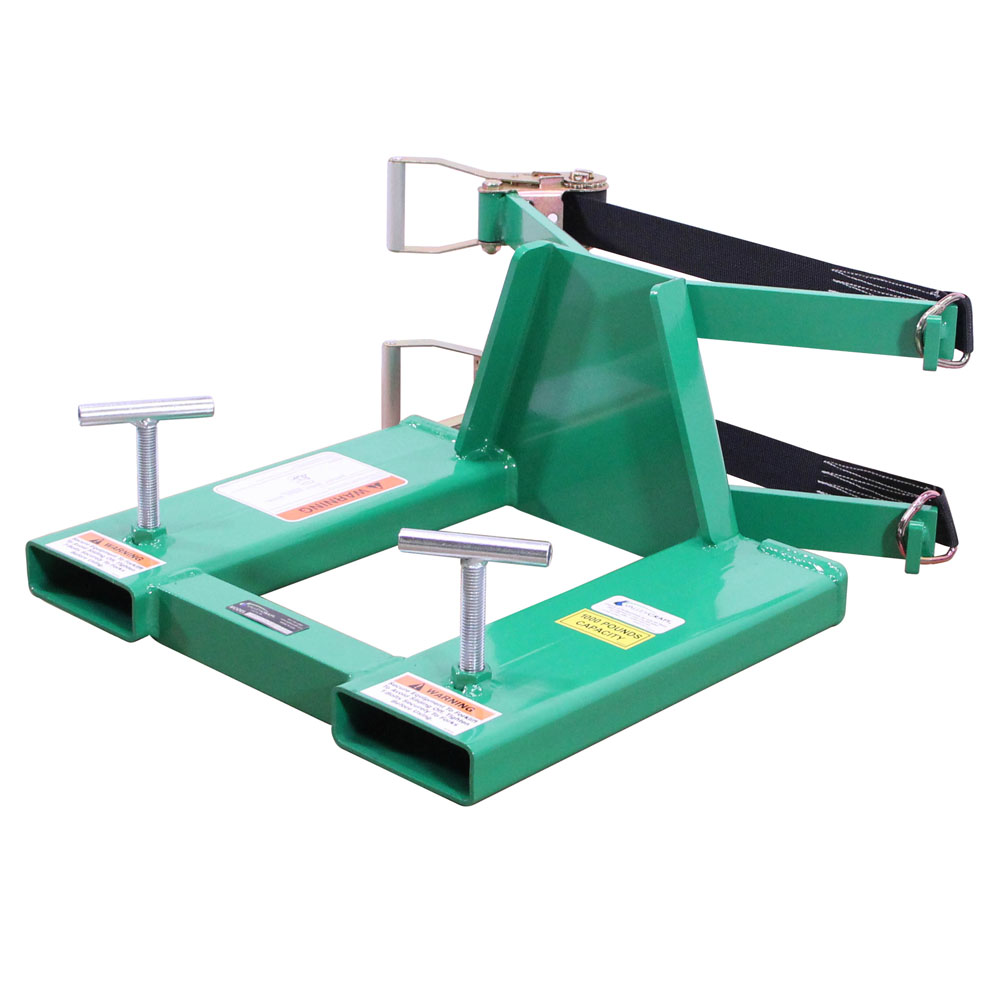

- F80147A7 - Secure drum for transport by applying tension with ratchet straps.
- F80147A7 - Release drum by lowering to floor then manually releasing ratchet straps.

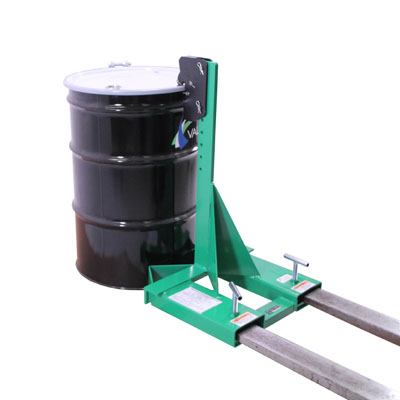

- F85370A0 - Secure drum for transport by engaging beak hook.
- F85370A0 - Release drum by lowering to floor, automatically releasing pressure on the beak Straps conform to container for maxiumum security.
- Built-in T-bolts screw down to secure unit to forklift forks.
- Model F80147A7 compatible with steel/plastic/fiber drums, 30-55 gallons (14-24" in diameter).
- Model F85370A0 compatible with steel/plastic/fiber drums, 30-85 gallons (18-28” in diameter).
- 1,000 lb. capacity.
- Heavy gauge steel construction.
- Premium powder coat paint finish in green.
- Ships fully assembled, ready to use.
- Made in the U.S.A.
Product details
Model # = F80147A7
Weight
Width
Depth
72
24
22
Height
Adjustable Height
Freight Class
11"
No
70
Quick Ship
Ships Assembled
Material
No
Yes
-
Total Capacity
Shelf Capacity
Number of Fixed Shelves
1000lbs
-
-
Number of Adjustable Shelves
Number of Doors
Manual Close or Self Close Doors
-
-
-
Number of Bins
Pegboard Included
Loubvered Panel Included
-
-
-
Number of Drawers
Optional Drawers
Legal or Letter Size Drawers
-
No
-
Option to Add Casters
Caster Material
Caster Brakes
No
-
-
Floor Lock
Handle Type
Country of Origin
-
-
USA
