Gas Cylinder Hand Trucks, Single & Double Cylinders

Ship Weight (lbs.) - 41
Freight Class: 175
Shipping Time - 10 Days

$857.00
 Reviews

Choose Model From Dropdown List


Model Cylinder Size &
Number

ShoeSize
W x D, (in.)

Wheels Brakes Dimensions
W x D x H (in.)
Weight
F81238A9 9", Single 11 x 4 (2) 12" Pneumatic Hand Brake 20 x 16 x 50 41 lbs.

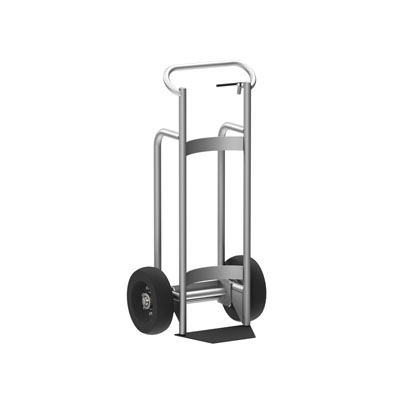

F81303A9 14", Single 14-1/2 x 8 23 x 20 x 50 46 lbs.

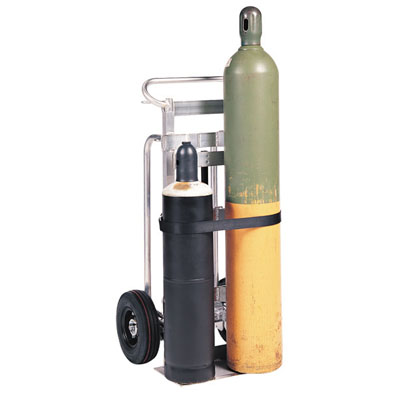

F86065A6 9", Double 19 x 11-3/4 23 x 26 x 50 64 lbs.
F86070A9 9", Double None 56 lbs.

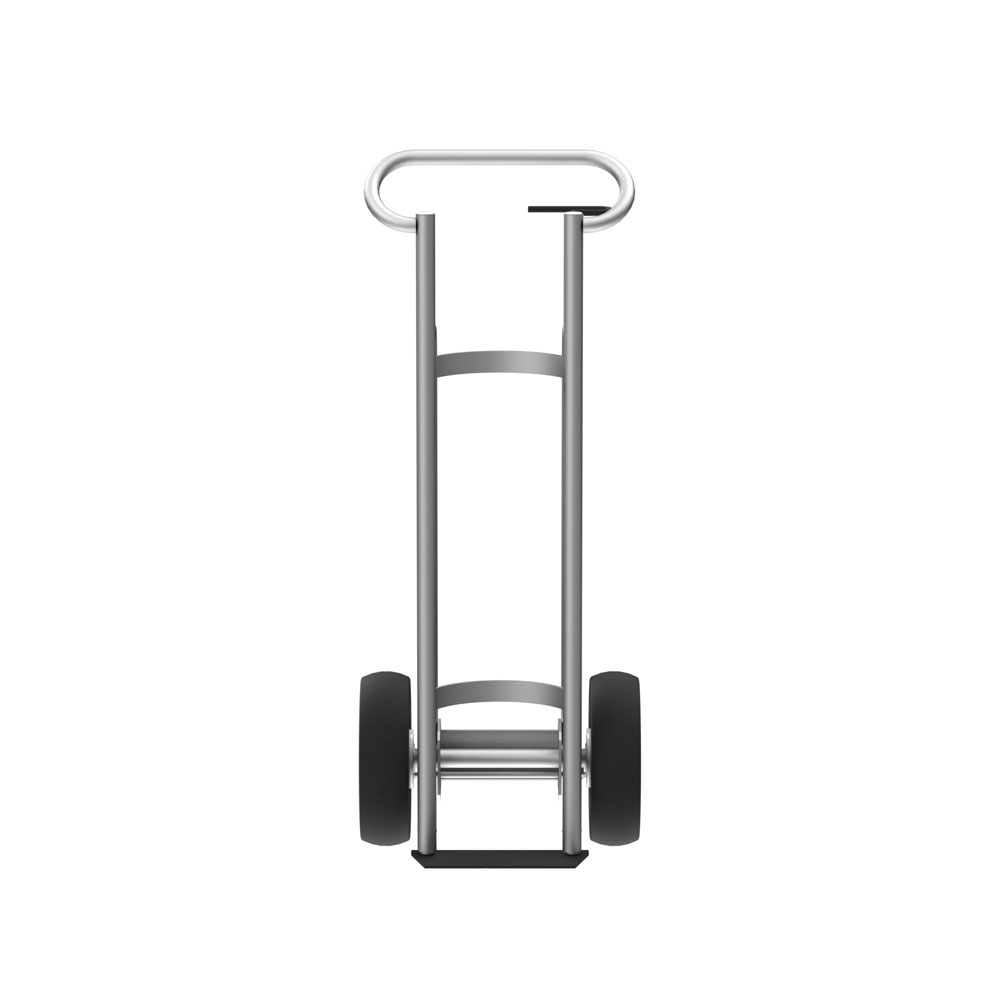

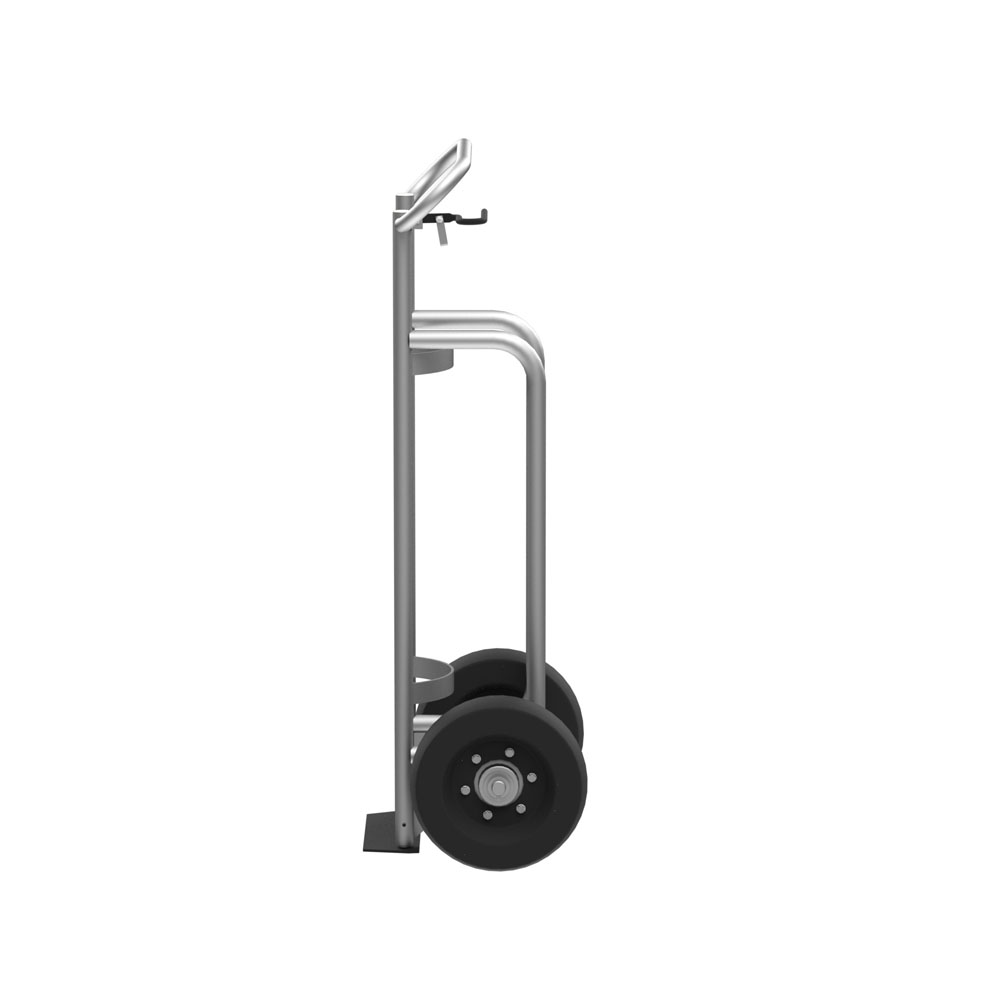

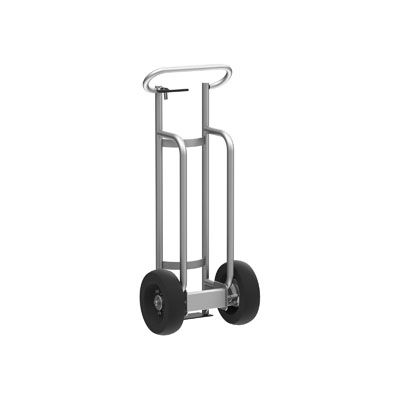

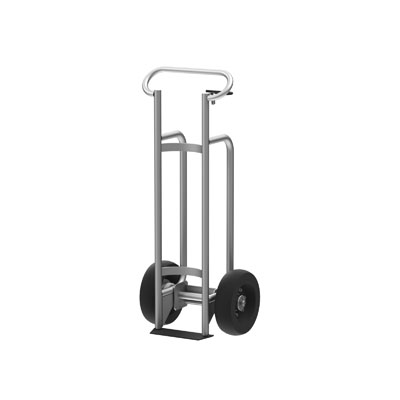

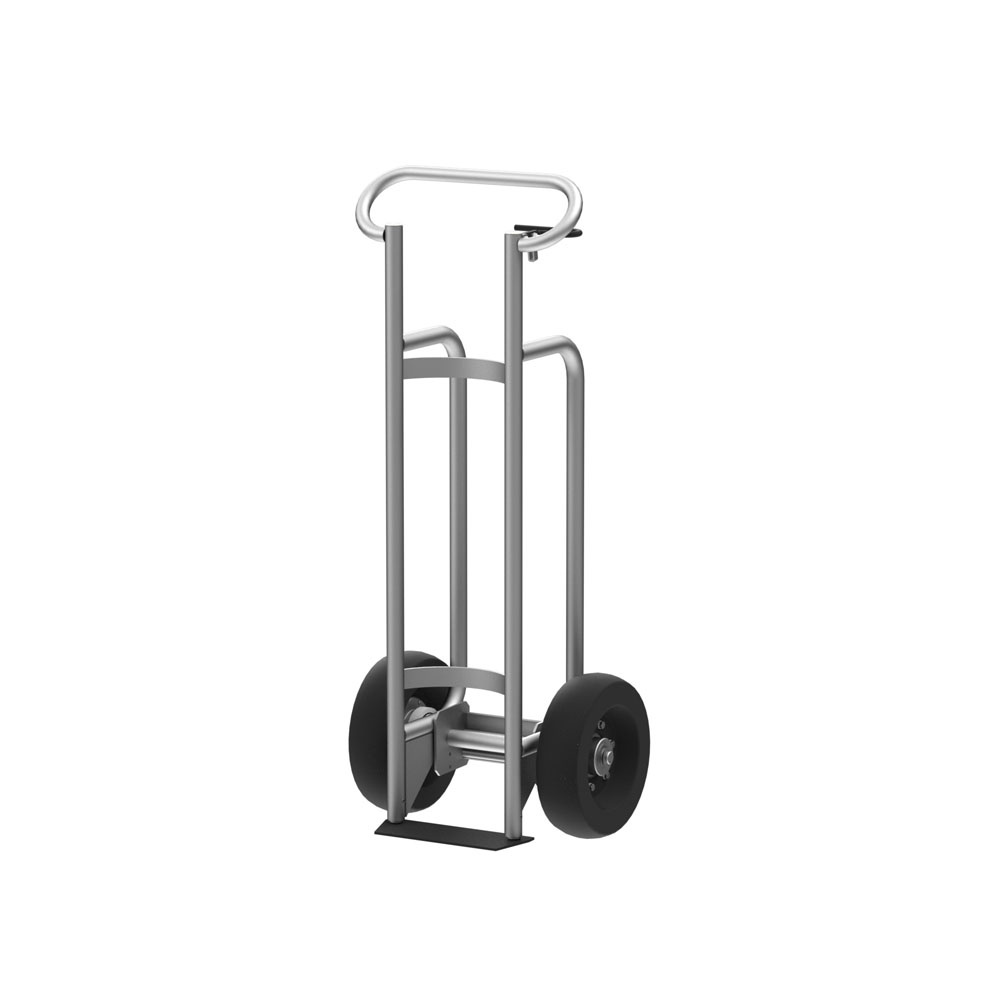

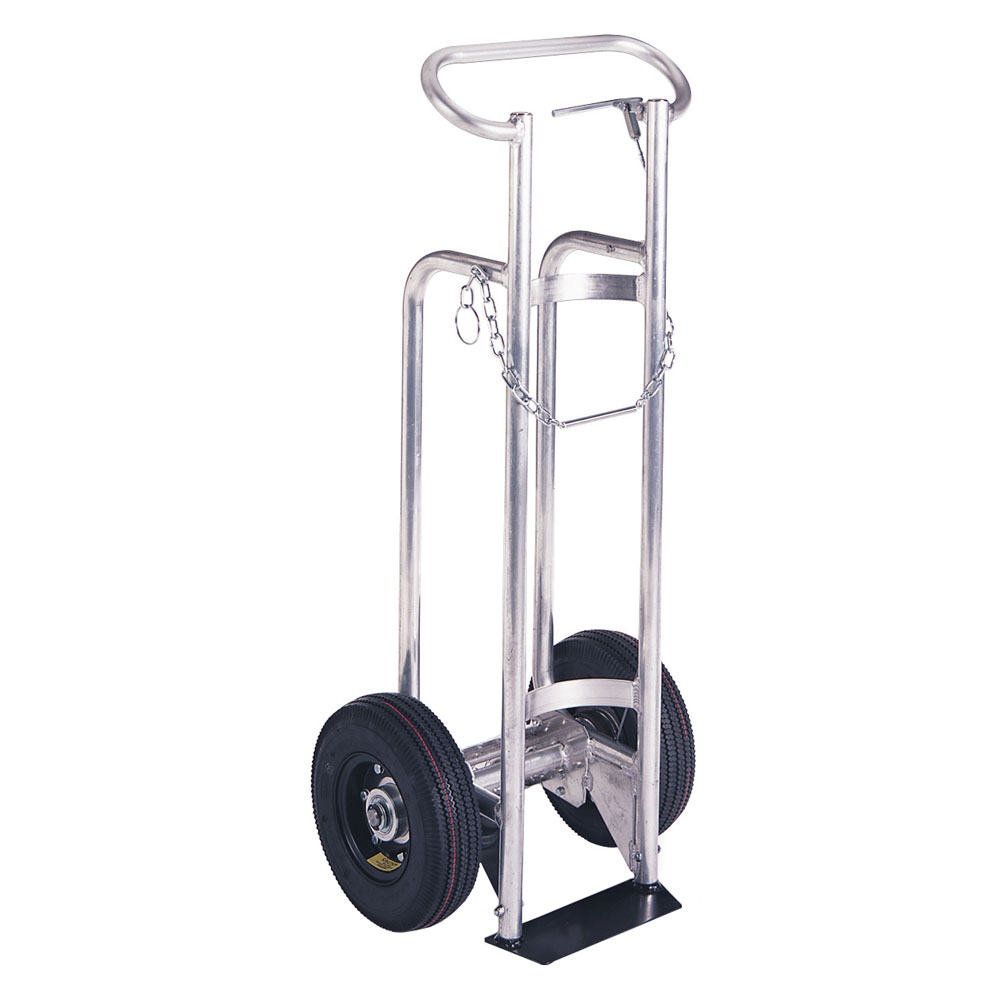

Valley Craft’s Cylinder Hand Truck creates a safe and secure means to transport gas cylinders throughout your facility. Constructed of premium aluminum with solid welds, this hand truck provides superior durability. Cylinder hand trucks are lightweight and spark resistant. Load capacity is 600 lbs. and can be easily maneuvered across various terrain on (2) 12” pneumatic wheels. Once the cylinder is on the hand truck, secure it using the included safety chain.  1” steel axles are fully enclosed in a protective housing with sealed bearings to improve the durability, functionality, and longevity of your unit. The deep frame design provides added protection for operators should it fall back, as well as an alternative method for loading cylinders (while laying on its back). This unit works with an expanded range of cylinders, compatible with all diameter tanks up to 14". Valley Craft’s Single Cylinder Hand Trucks improve handling and can withstand rigorous use whether on delivery trucks or throughout facilities. Products are shipped fully assembled, ready-to-use, and are made in the U.S.A.

  • Provides safe and secure transportation of gas cylinders.
  • Aluminum frame is lightweight for easy handling, and spark resistant.
  • Included safety chain secures tank.
  • Maneuvers easily on (2) 12" pneumatic wheels.
  • Hand brake (select models)  provides added control and safety.
  • Ergonomic loop handle for easy maneuvering.
  • 600 lb. capacity.
  • Heavy duty aluminum construction with solid welds.
  • Ships fully assembled, ready to use.
  • Made in the U.S.A.

Product details

Model # = F81238A9

Weight
Width
Depth
41
20"
16"
Height
Adjustable Height
Freight Class
50"
No
175
Quick Ship
Ships Assembled
Material
No
Yes
Aluminum
Total Capacity
Shelf Capacity
Number of Fixed Shelves
600lbs
-
-
Number of Adjustable Shelves
Number of Doors
Manual Close or Self Close Doors
-
-
-
Number of Bins
Pegboard Included
Loubvered Panel Included
-
-
-
Number of Drawers
Optional Drawers
Legal or Letter Size Drawers
-
No
-
Option to Add Casters
Caster Material
Caster Brakes
Yes
(2) 12" Pneumatic
No
Floor Lock
Handle Type
Country of Origin
No
-
USA
