Universal Lift & Stacker, Fully Powered Lift/Drive, 78"H, 1,000 lb. Capacity

Ship Weight (lbs.) - 1204
Freight Class: 175
Shipping Time - 15 Days

$12,481.00
 Reviews

Choose Model From Dropdown List

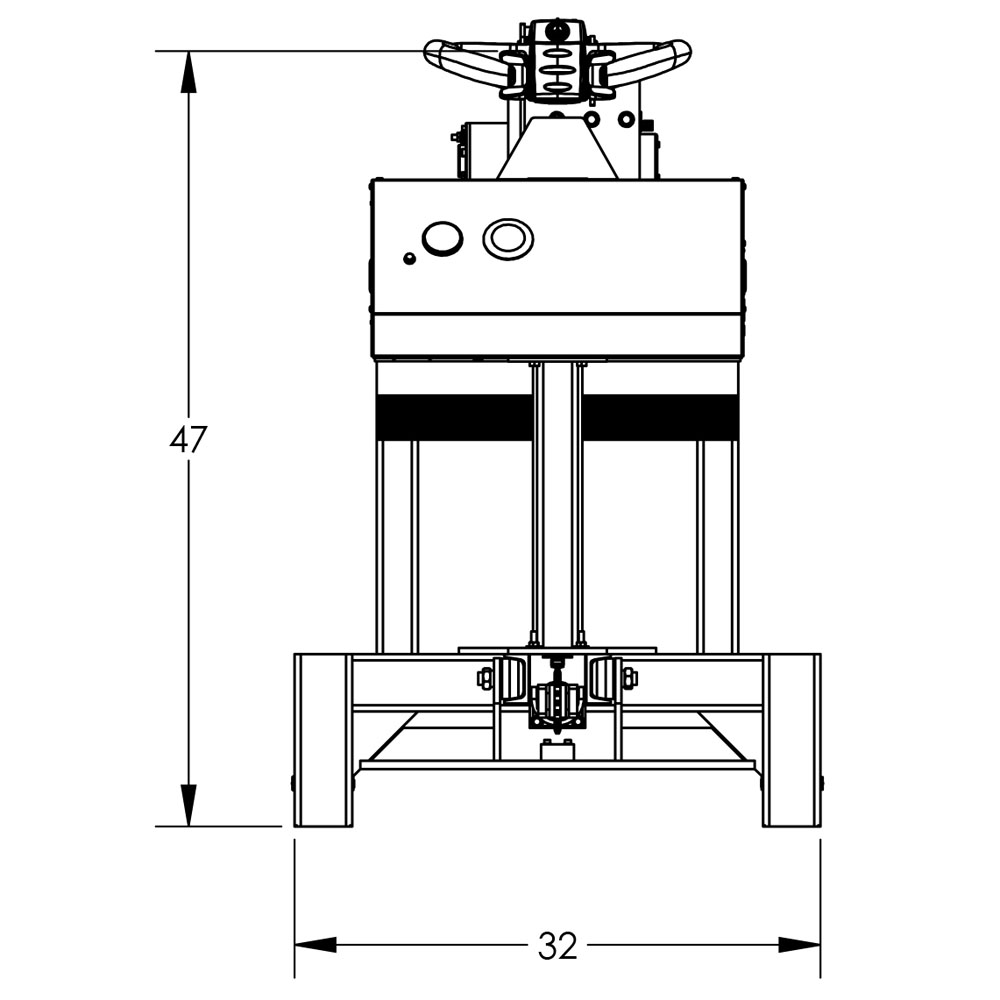

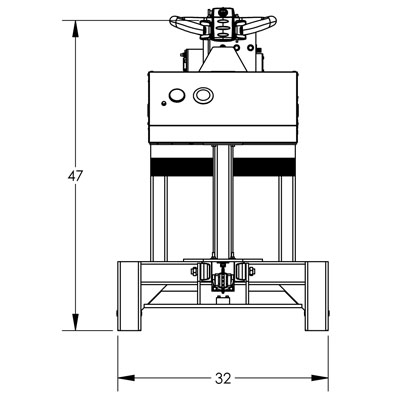

Model Dimensions (in.) Wheels Weight
F80136A9 47"W x 32"H x 78"H (2) 5" Front Rigid &
(1) 12" Rear Powered Wheel
1,130
F80136A8 47"W x 32"H x 90"H 1,165

Valley Craft’s Fully Powered Steel Universal Lift & Stacker is the perfect solution to handle all your material handling needs with just one base unit. The base unit comes with a flexible mount that works with a variety of optional accessory attachments. Platforms, forks, and a variety of drum handling attachments can all easily be connected to the unit for simple operation. All accessories are interchangeable so you can use one unit for a variety of applications by purchasing different attachments and simply switch out attachments as needed. The powered (leave for fully powered and semi powered options only) lift raises to a height of 71” less than 30 seconds. The heavy duty wheels provide simple maneuvering and a 1,000 lb. capacity. The fully powered design has a powered drive system as well as a powered lifting/lowering operation. The counter-weighted base improves handling with the ability to butt directly up to pallets, shelving, or other units without having to worry about extended front legs getting in the way. Designed as a standalone lift, forklift assistance is not required. Valley Craft’s Steel Universal Lifts & Stackers are built to last utilizing heavy gauge material with a premium powder coat paint finish in green. Products are shipped fully assembled, and made in the U.S.A.

  • Safely and ergonomically lift and/or rotate a variety of materials throughout facility.
  • Solves a variety of material handling needs with one base unit.
  • Base unit works with a variety of optional attachments.
  • Standalone unit (no forklift required).
  • 24V battery powered lift and drive.

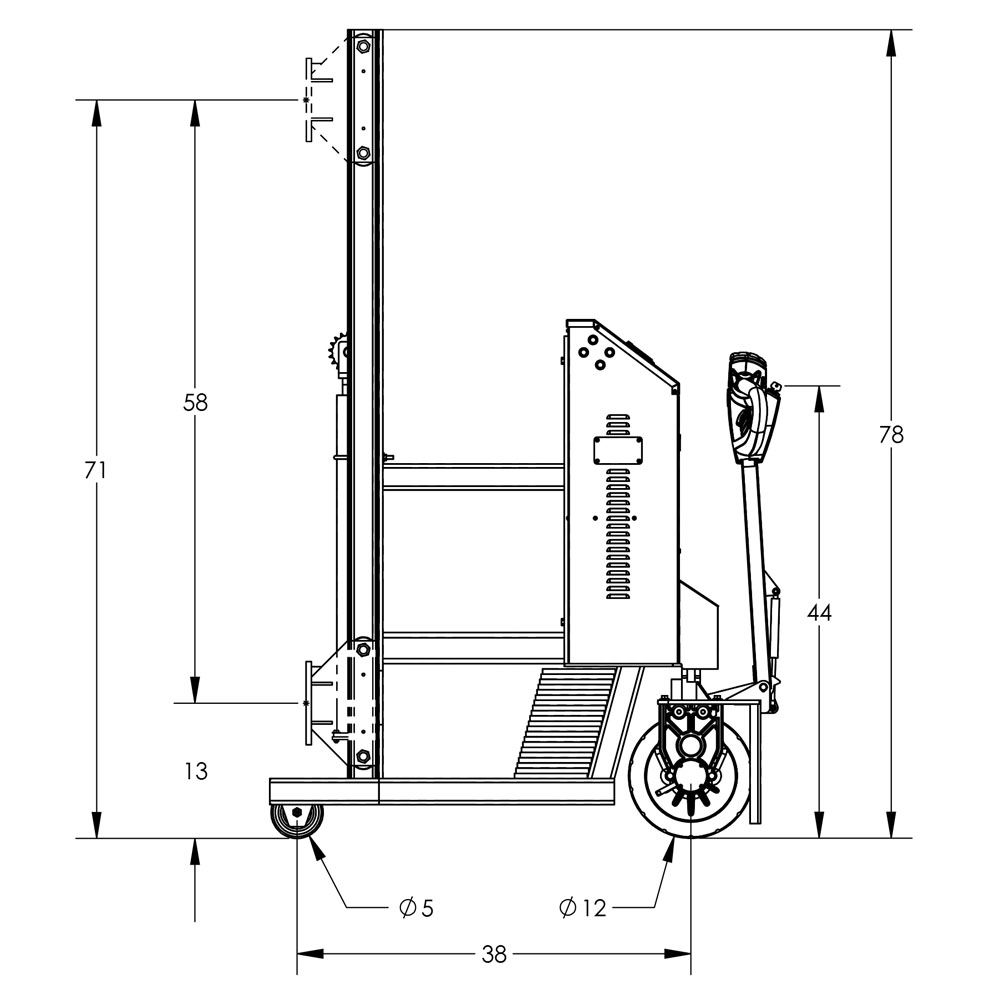

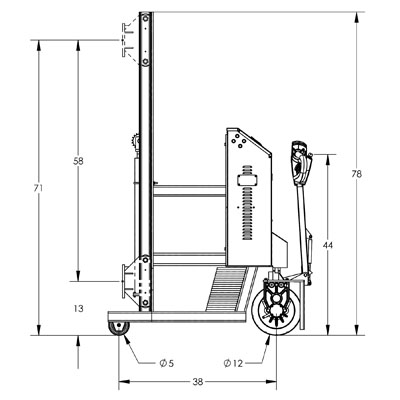

  • Raise material to a maximum height of 58" or 71" off the floor.
  • Minimum center grip height of 13" off the floor.
  • Counterweighted unit butts directly up to pallets, shelving, or other items.
  • Compatible with interchangeable platform, forks, and drum attachments.
  • Drive up to 2.5 MPH on (2) 5" front swivel casters and (1) 12" powered rear wheel.
  • 1,000 lb. capacity.
  • Heavy gauge steel construction.
  • Premium powder coat paint finish in green.

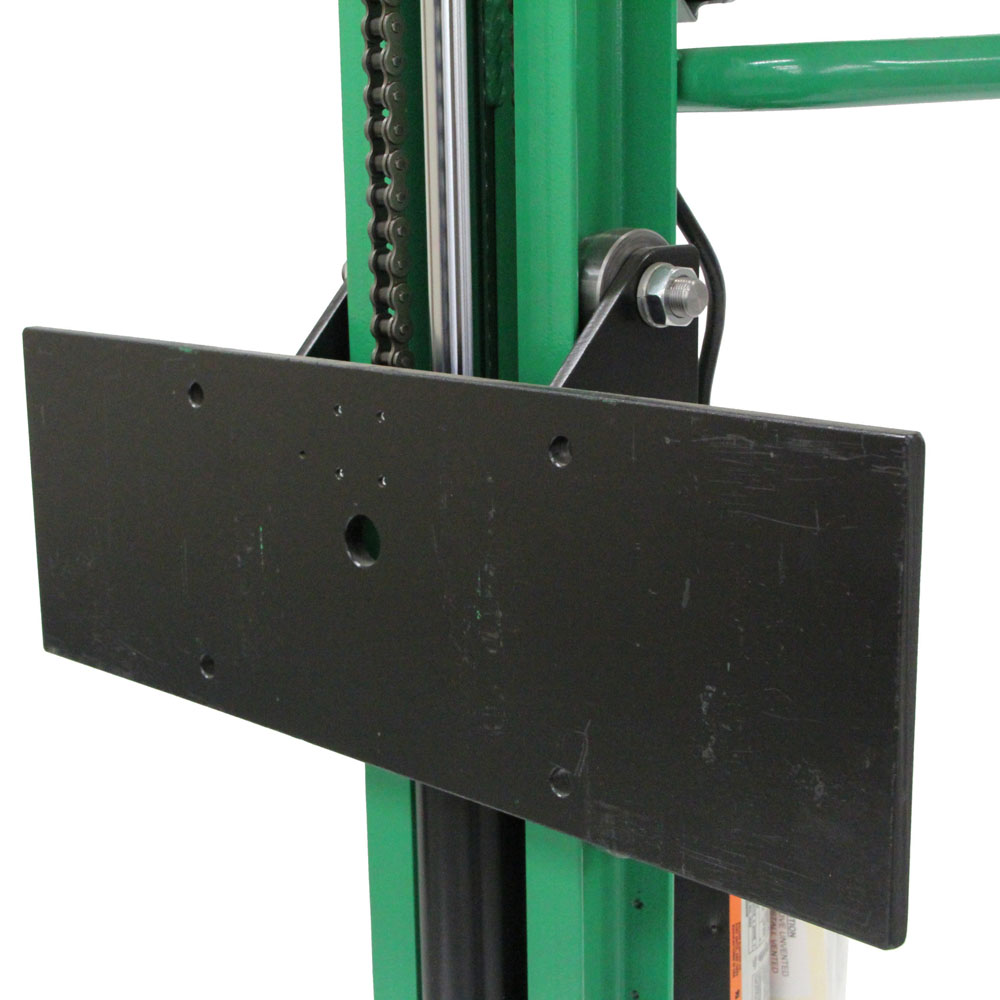

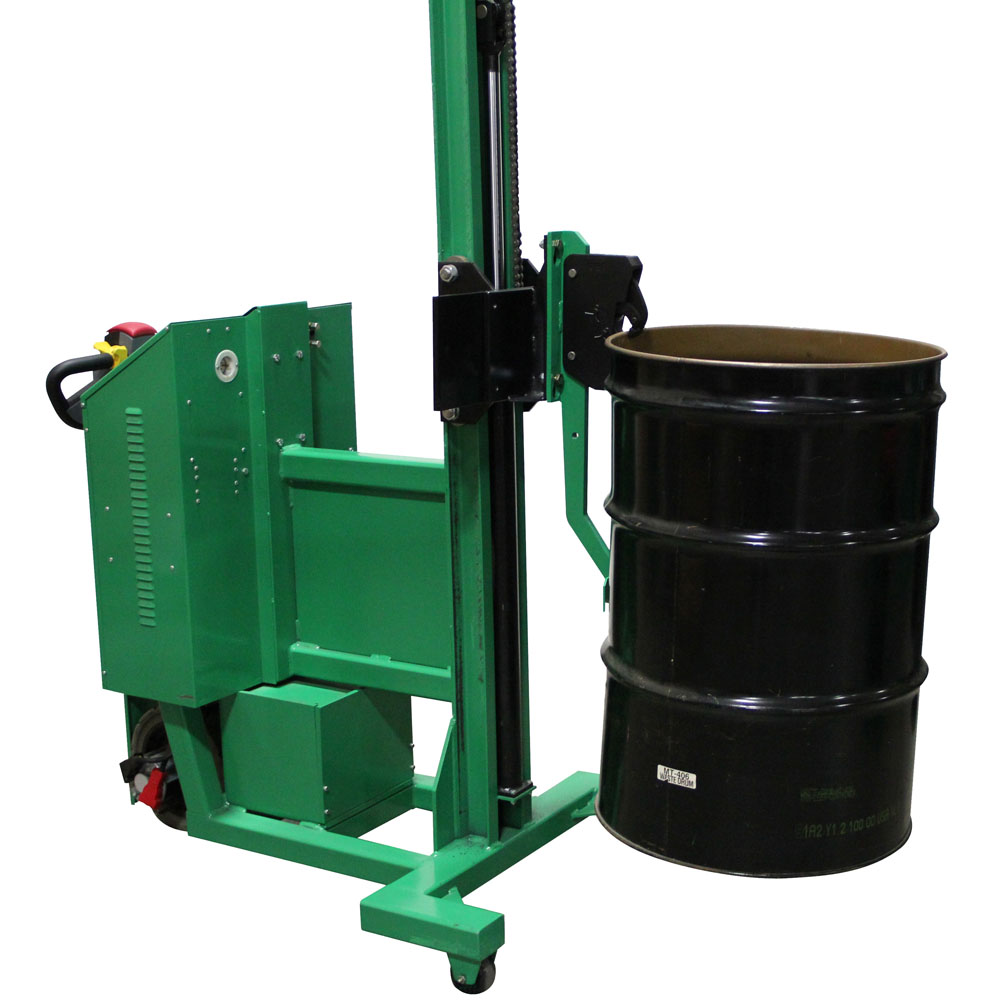

  • Accessory options include: drum grip, drum beak, drum rotator, drum tilter, pallet forks, and steel platform (sold separately). Backplate makes attachments interchangeable.
  • Ships fully assembled, ready to use.
  • Made in the U.S.A.

Product details

Model # = F80136A9

Weight
Width
Depth
1204
47
32
Height
Adjustable Height
Freight Class
78
No
175
Quick Ship
Ships Assembled
Material
No
Yes
-
Total Capacity
Shelf Capacity
Number of Fixed Shelves
1000lbs
-
-
Number of Adjustable Shelves
Number of Doors
Manual Close or Self Close Doors
-
-
-
Number of Bins
Pegboard Included
Loubvered Panel Included
-
-
-
Number of Drawers
Optional Drawers
Legal or Letter Size Drawers
-
No
-
Option to Add Casters
Caster Material
Caster Brakes
Yes
(2) 5" Front Swivel & (1) 12" Powered Rear
No
Floor Lock
Handle Type
Country of Origin
No
-
USA
