Drum Clamp & Rotate Powered Skid Steer Attachment

Model - F89698
Ship Weight (lbs.) - 697
Freight Class: 77.5
Shipping Time - 5 Days

$7,745.00
 Reviews


Model Steel Gauge Capacity (lbs.)  Dimensions Weight (lbs.)
F89698 14 2,000 52″L x 46″W x 21″H 625

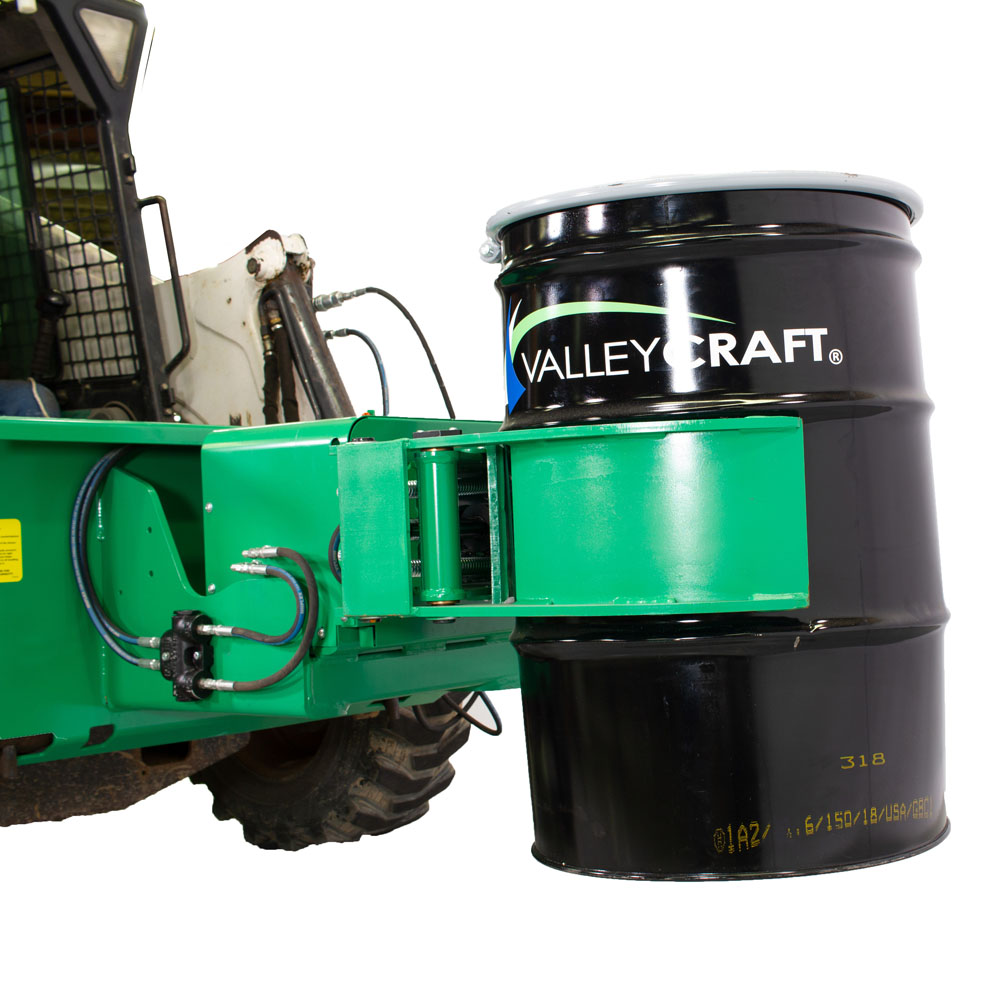

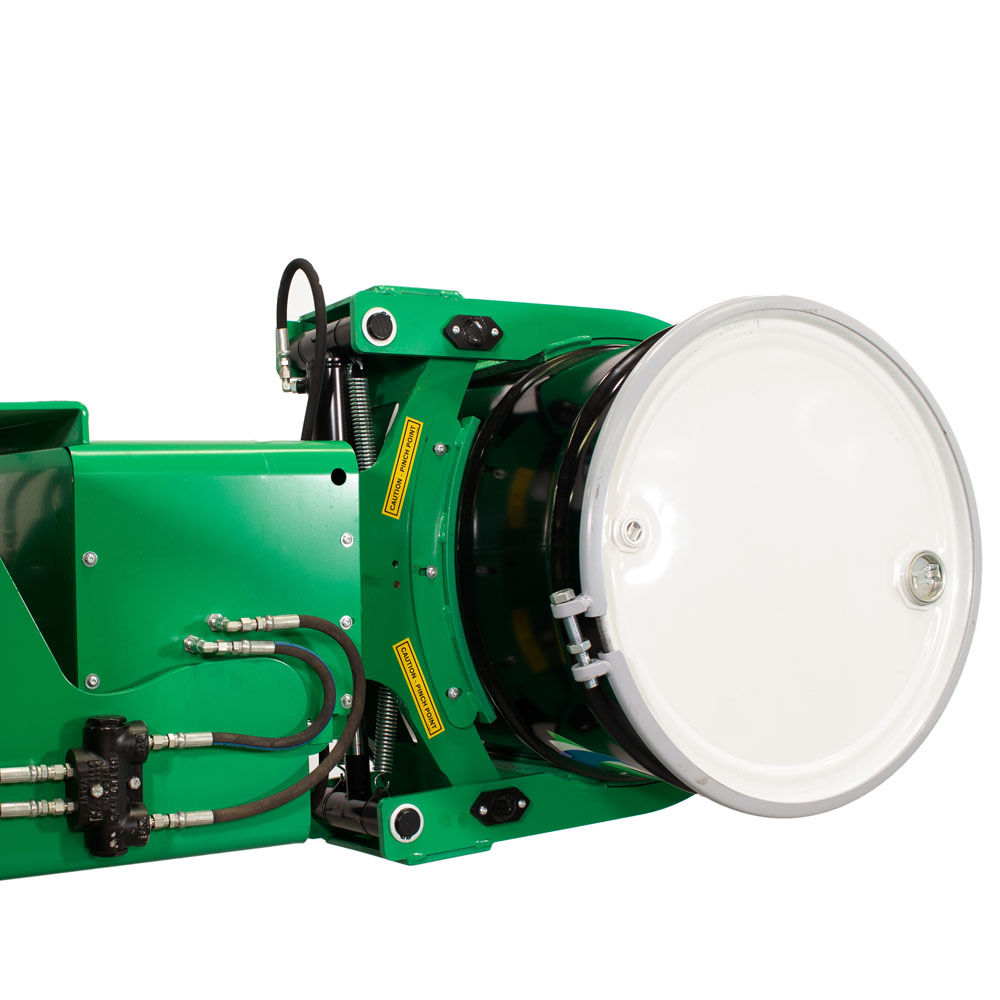

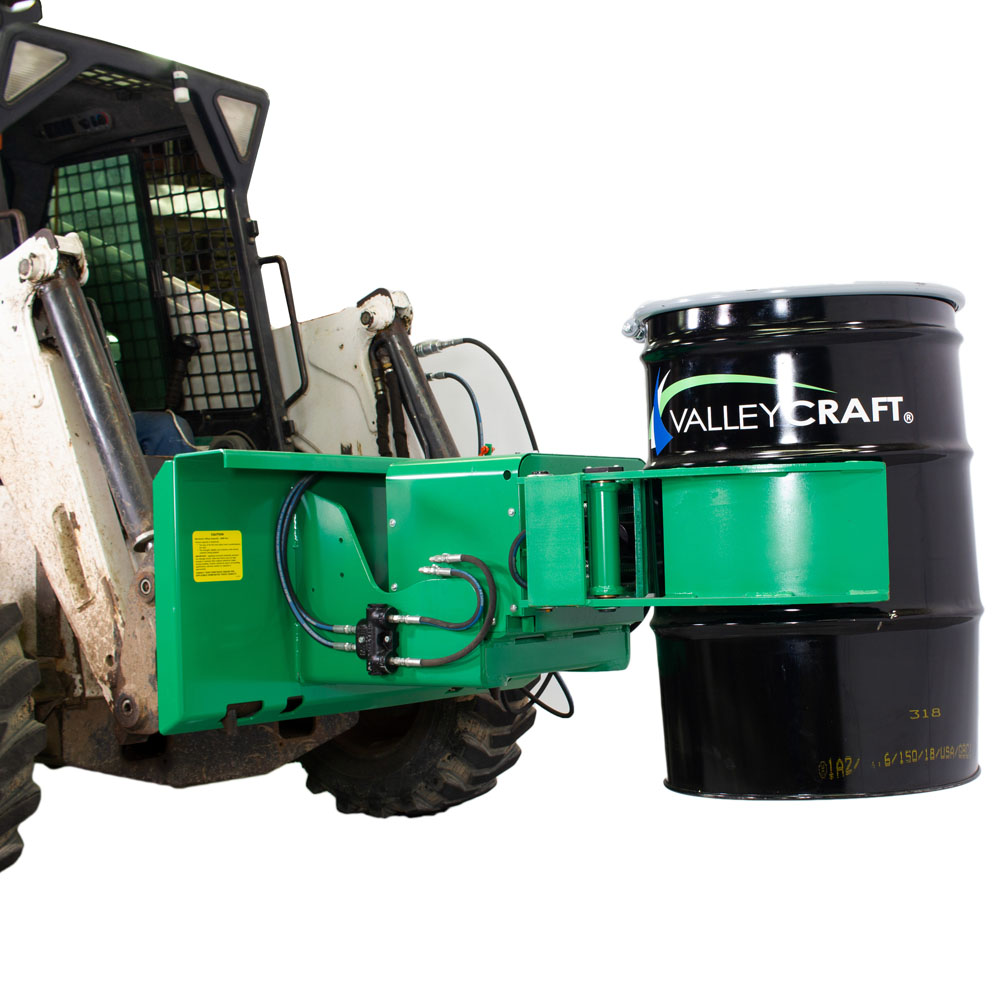

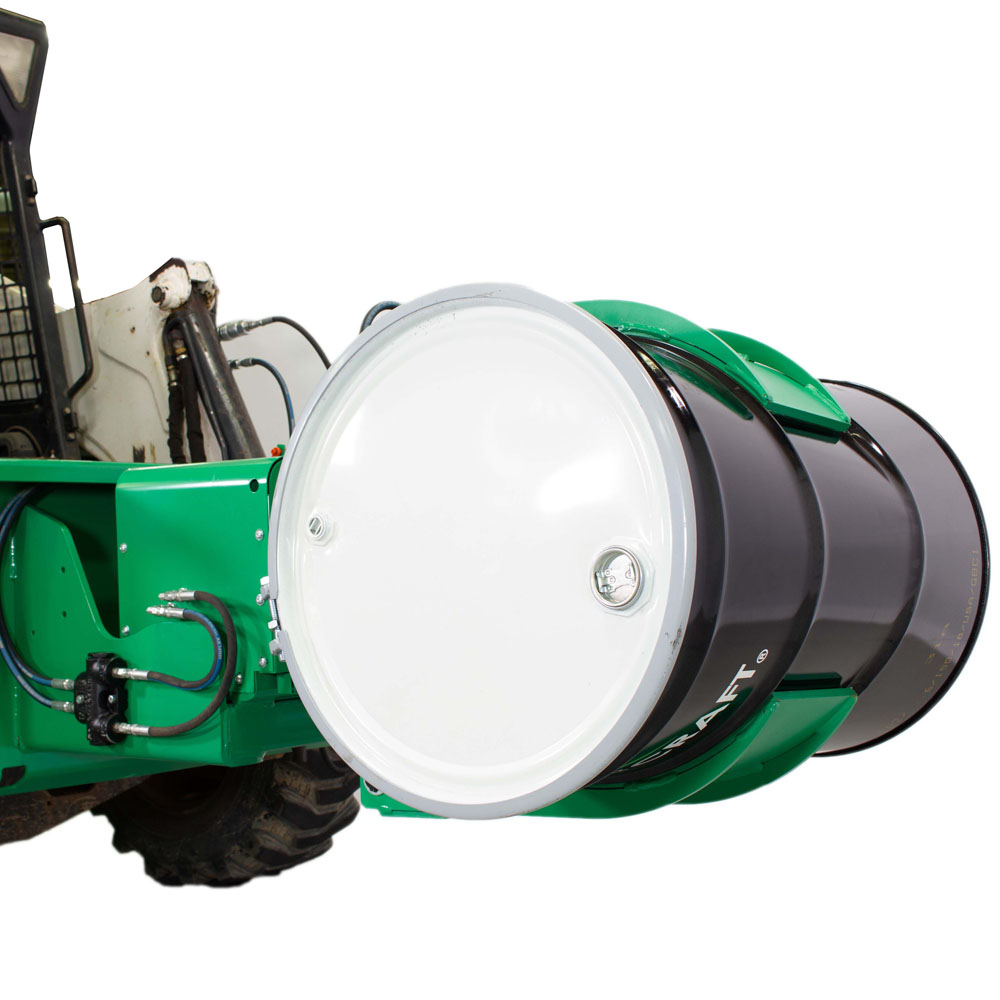

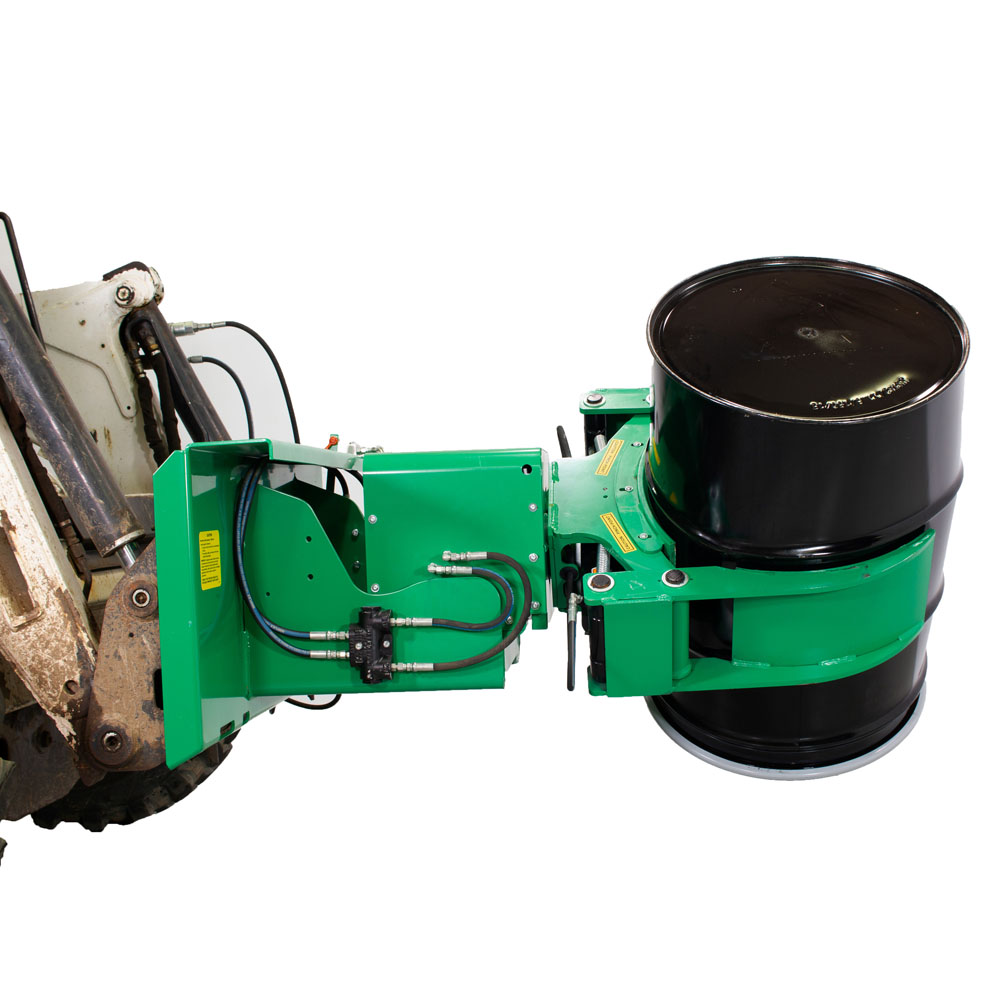

Valley Craft’s Powered Drum Skid Steer Attachments create a quick, safe and ergonomically friendly means of handling drums by utilizing power. You can simply lift, rotate, dump, transport and store your drums with ease, without having to leave the seat of your skid steer. Compatible with all drum styles (steel, plastic and fiber) with a diameter of 18-28” and a load capacity of 2,000 lbs., drum handling and maneuvering has never been easier. Units have hydraulic actuated jaws and an adjustable pressure gauge to help ensure the appropriate amount of pressure is applied to secure your drum without damaging it. Variable speed control improves safety and ease of operation. Skid steer powered units come with auxiliary lines and quick-connect couplers to easily connect to your skid steer. Skid steer powered units operate using convenient in-cab controls and have the ability to run continuously without the need to recharge. The clamp/unclamp function is accomplished by activating the selector valve (via a rope pull) on top of the frame. When the rope is not being pulled, the same hydraulic lever will activate the rotating function. Valley Craft’s Powered Drum Skid Steer Attachments improve the safety and productivity of any facility that is rotating or transporting drums by eliminating the need for hazardous manual assistance. Constructed of heavy gauge steel with a premium powder coat paint finish in green, you can be confident these units are built to last. Products are shipped fully assembled, and made in the U.S.A.

  • Quickly and ergonomically transport, rotate, dump, and store drums.
  • Powered grip, release, and rotate (360°).

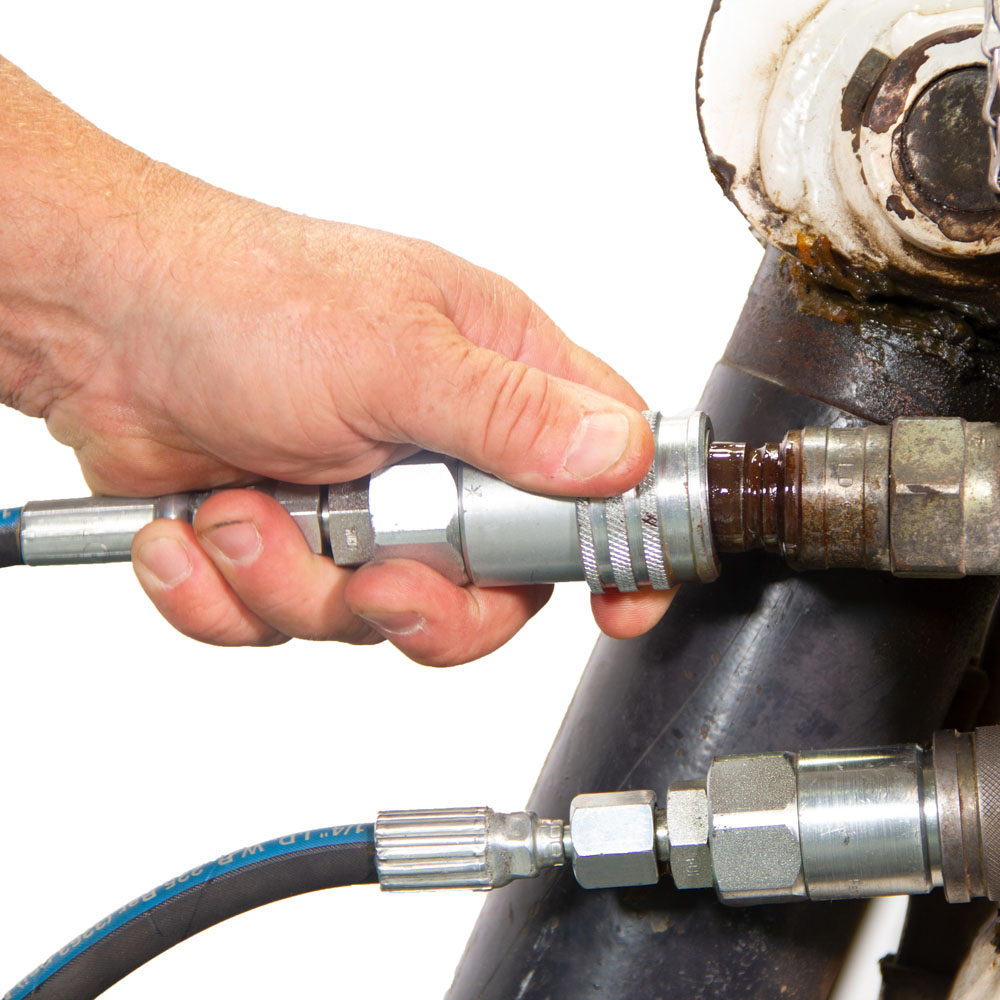

  • Skid Steer powered, connect unit by attaching included quick-connect couplers to skid steer auxiliary circuit.
  • Clamp/Unclamp: activate selector valve (via rope pull) on top of the frame.
  • Rotate: use hydraulic lever (when rope is not being pulled).
  • Hydraulic actuated jaws, with adjustable pressure gauge.
  • Variable speed control.
  • Compatible with steel/plastic/fiber drums, 30-85 gallons (18-28" in diameter).

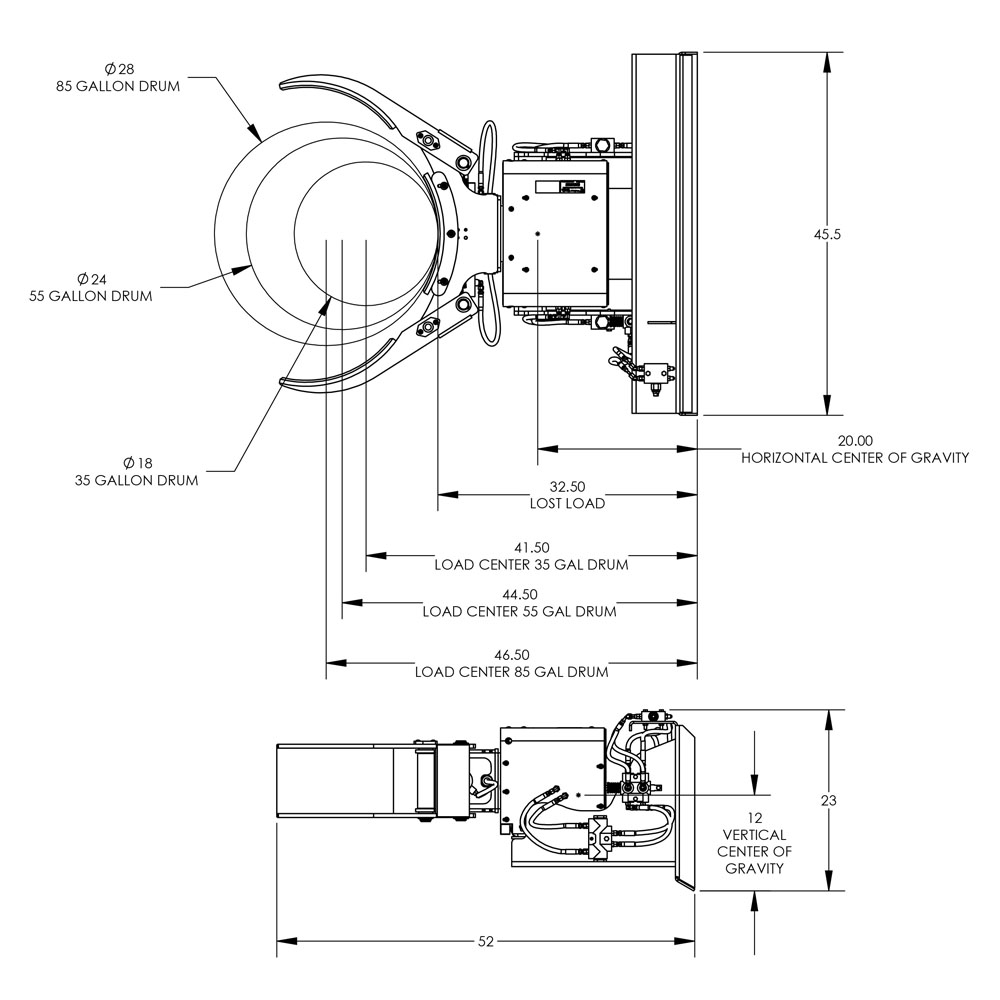

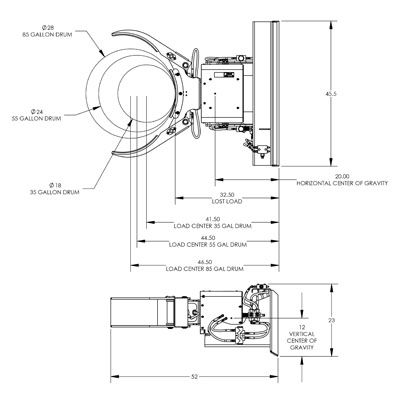

  • 52"L x 46"W x 21"H.
  • 2,000 lb. capacity.
  • Heavy gauge steel construction.
  • Premium powder coat paint finish in green.
  • Ships fully assembled, ready to use.
  • Made in the U.S.A.

Product details

Model # = F89698

Weight
Width
Depth
697
52
46
Height
Adjustable Height
Freight Class
21"
No
77.5
Quick Ship
Ships Assembled
Material
No
Yes
-
Total Capacity
Shelf Capacity
Number of Fixed Shelves
2000lbs
-
-
Number of Adjustable Shelves
Number of Doors
Manual Close or Self Close Doors
-
-
-
Number of Bins
Pegboard Included
Loubvered Panel Included
-
-
-
Number of Drawers
Optional Drawers
Legal or Letter Size Drawers
-
No
-
Option to Add Casters
Caster Material
Caster Brakes
No
-
-
Floor Lock
Handle Type
Country of Origin
-
-
USA
