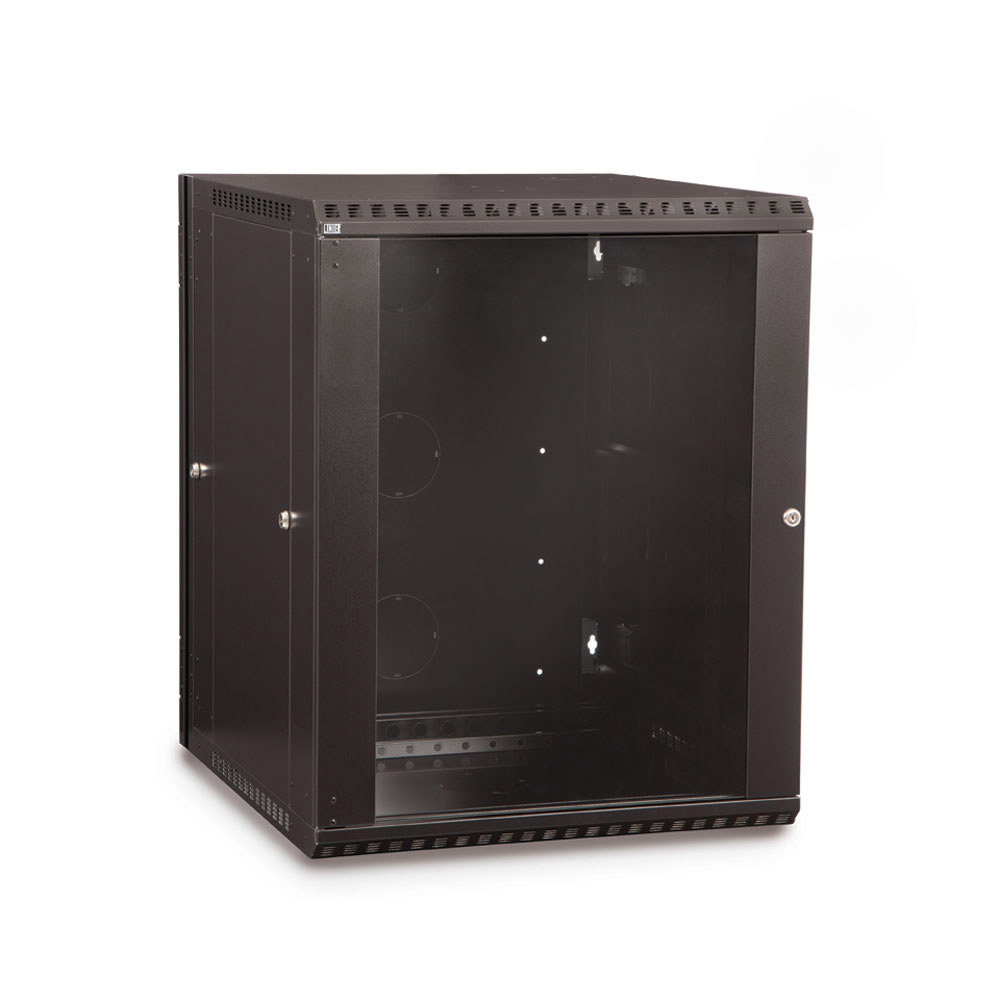

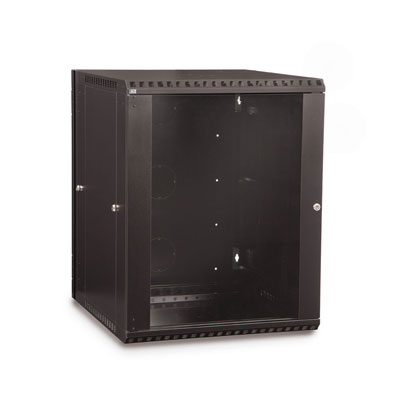

Linier 3130 Series 15U Swing-Out Wall Mount Cabinet

Model - 3130-3-001-15
Ship Weight (lbs.) - 106
Freight Class: 125
Shipping Time - --> Depends upon item & quantity. 3 Days to 2 Weeks.

$558.00
 Reviews

Online shipping quotes for orders over 6 pieces are likely incorrect and invalid. Please call for a quote.


Please note - the price listed here is the minimum advertised price.
Be sure to use the coupon code KH-Save to see our best price

Model No. Description Dimensions Weight
3130-3-001-15 LINIER3130 Series 15U Swing-Out Wall Mount Cabinet 23.5" W x 25.99 'D X 29.38 ' H 76 LBS.

The LINIER Swing-Out Enclosures are designed to solve the everyday problems technicians have while installing and managing the immense amount of cabling that is all-too-common with datacom and telecom equipment. Don?t work around the rack . . . get a rack that works around you!
Economical Design Smartly engineered to include all the features you would expect, at a competitive price point, and with the quality that comes with American manufacturing.
90 Degree Swing-Out Lockable enclosure can be swung out 90? from the back frame allowing access to the rear of installed equipment. This capability provides additional space and accessibility for terminating, installing and managing cables.
Numerous Laser
Knock-Outs

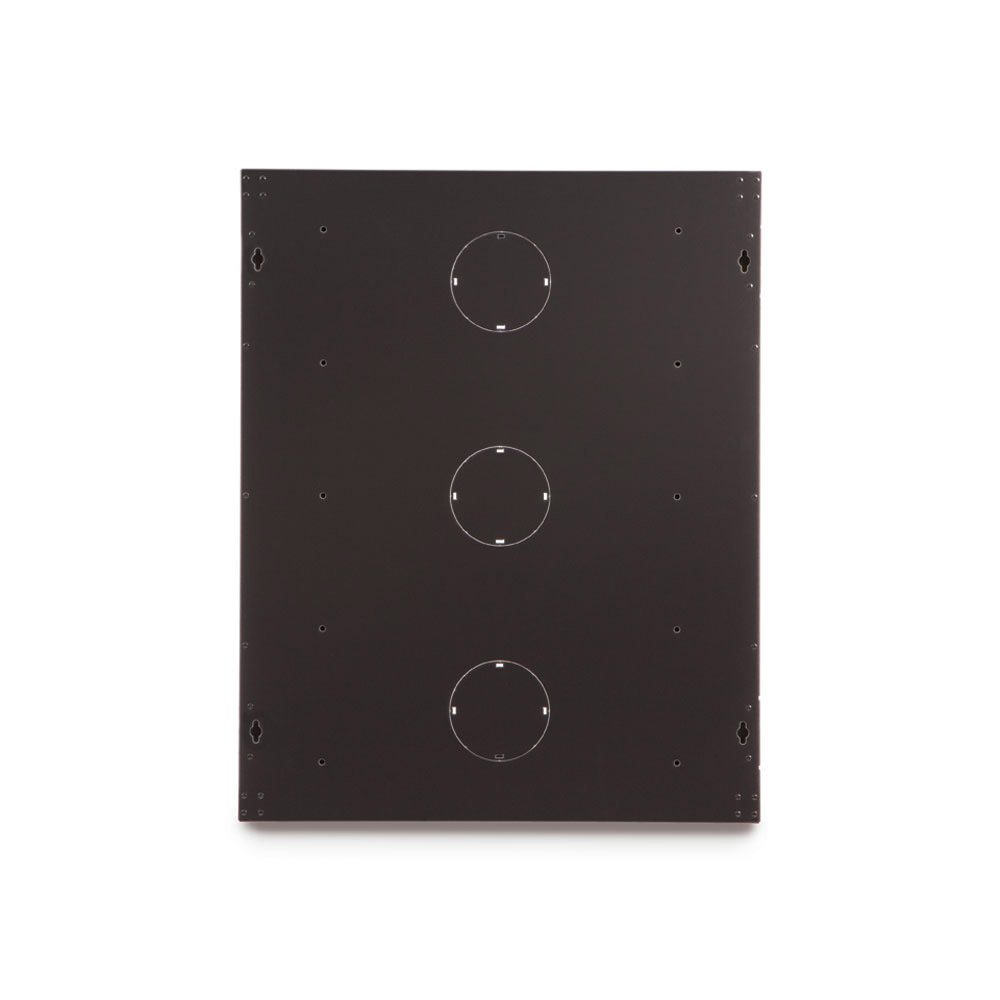

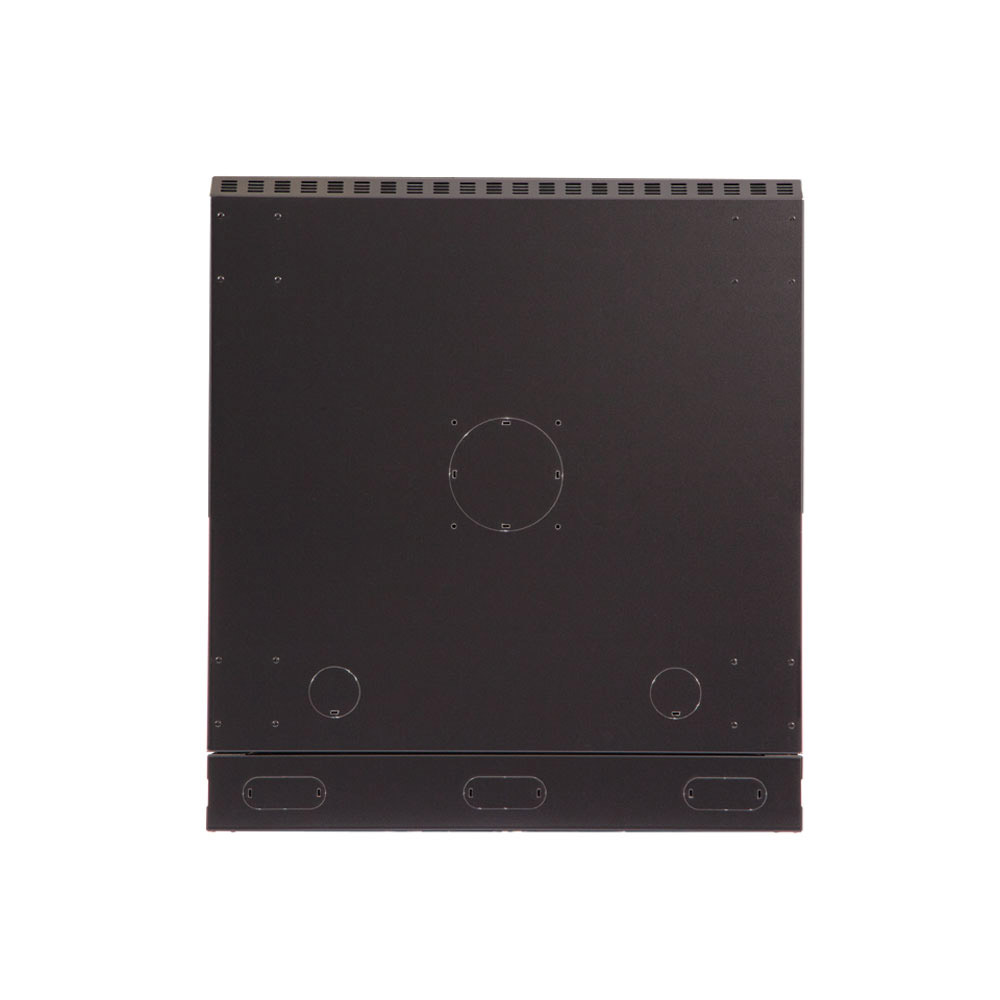

Strategically placed laser knock-outs provide a plethora of locations to feed copper or fiber optic cabling into the cabinet, or to install an optional fan kit for temperature control.
Adjustable Rails The included set of cage nut style rails fully adjust in 1" increments to accommodate the various depths of equipment on the market. Additional rails are available for devices that require 4-point mounting.

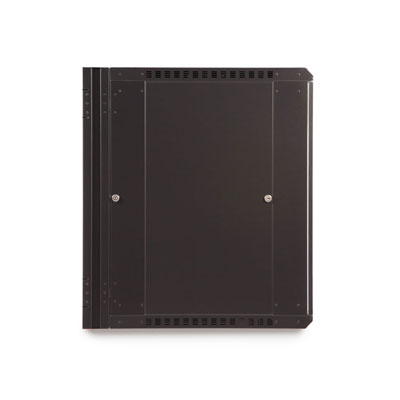

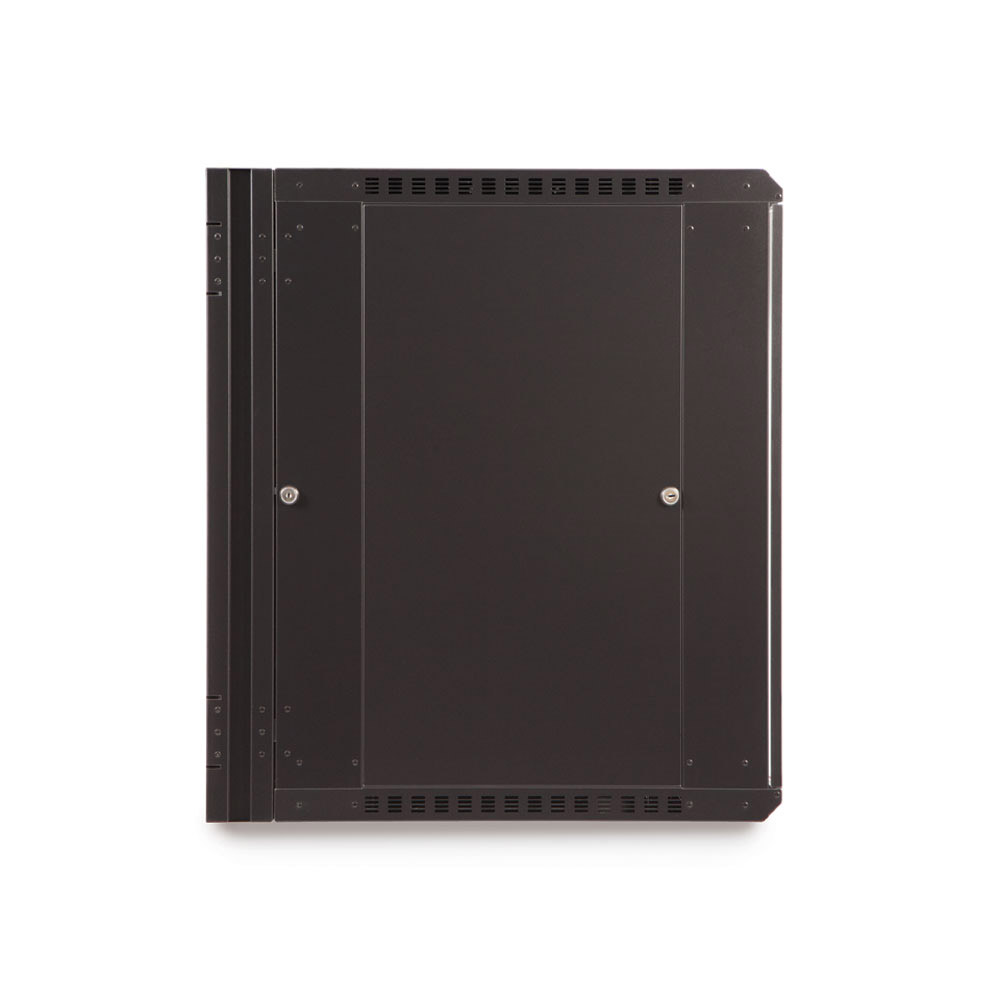

Removable Side Panels Easy-to-remove side panels provide more access for growing or changing cabling schemes, as well as offer the option for increased air flow to prevent equipment from overheating.
Locking
Doors and Side Panels
The locking feature provides additional security for all three access points, to keep your valuable rack mounted equipment safe from unauthorized use.

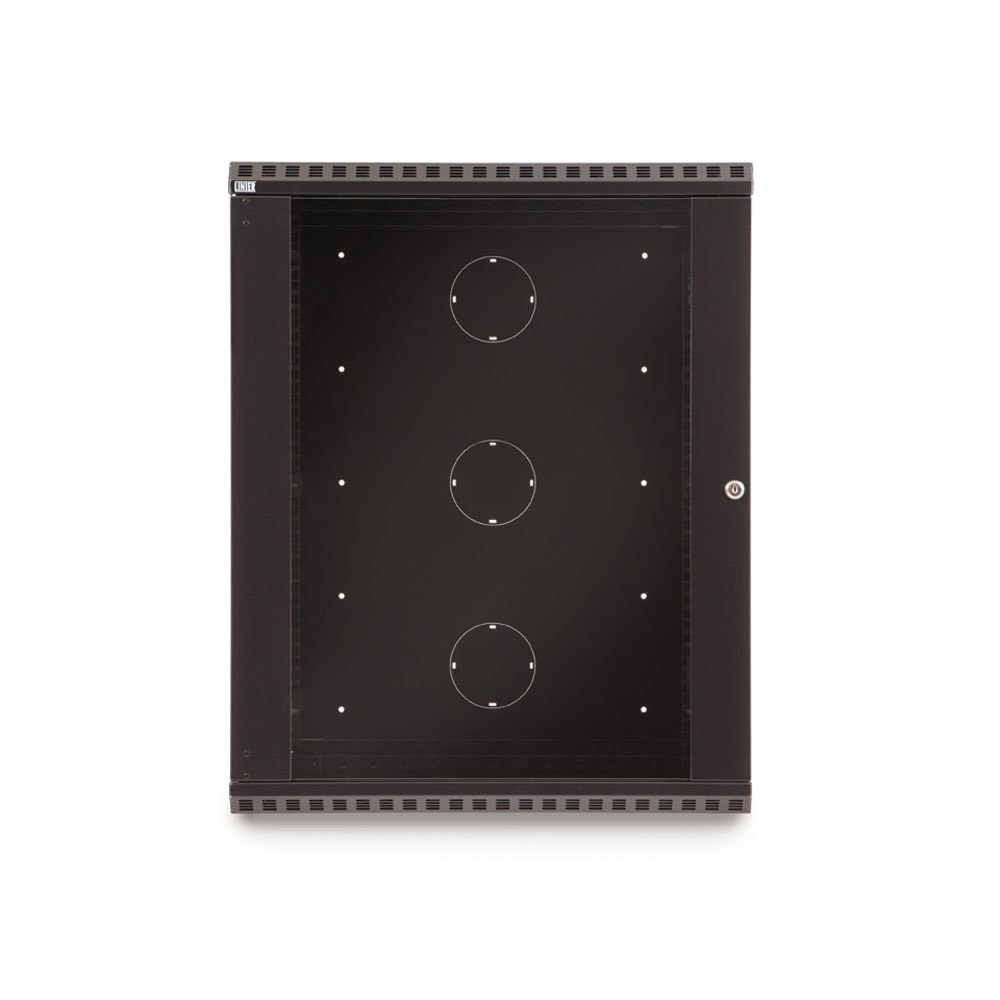

Reversible Glass Door Tempered safety glass door can be removed or reversed to be left or right mounted, to accommodate your particular installation.

Features:
? 150 lbs weight capacity
? 1 set of cage nut style mounting rails
? Black powder coated steel
? 90? positive stop swing-out
? Locking front door and side panels
? EIA compliant
? 5 year limited warranty
? Made in the USA

Product details

Model # = 3130-3-001-15

Weight
Width
Depth
106
23.75
27
Height
Adjustable Height
Freight Class
30.25
No
125
Quick Ship
Ships Assembled
Material
No
Yes
-
Total Capacity
Shelf Capacity
Number of Fixed Shelves
-
-
1
Number of Adjustable Shelves
Number of Doors
Manual Close or Self Close Doors
0
2
-
Number of Bins
Pegboard Included
Loubvered Panel Included
0
No
-
Number of Drawers
Optional Drawers
Legal or Letter Size Drawers
0
No
-
Option to Add Casters
Caster Material
Caster Brakes
No
-
-
Floor Lock
Handle Type
Country of Origin
-
Other
USA
