Model No. | Dimensions | Deck Height | Wheel Type | Weight |
CH-2436-12P | 36"W x 24"D x 16-1/2"H | 16-1/2 " | 12 " Pneumatic | 113 lbs. |
CH-2448-12P | 48"W x 24"D x 16-1/2"H | 16-1/2 " | 12 " Pneumatic | 123 lbs. |
CH-3048-12P | 48"W x 30"D x 16-1/2"H | 16-1/2 " | 12 " Pneumatic | 140 lbs. |
CH-3060-12P | 60"W x 30"D x 16-1/2"H | 16-1/2 " | 12 " Pneumatic | 155 lbs. |
CH-3660-12P | 60"W x 36"D x 16-1/2"H | 16-1/2 " | 12 " Pneumatic | 172 lbs. |
CH-3672-12P | 36"W x 72"H x 16-1/2"H | 16-1/2 " | 12 " Pneumatic | 187 lbs. |
2,000 lbs. Capacity

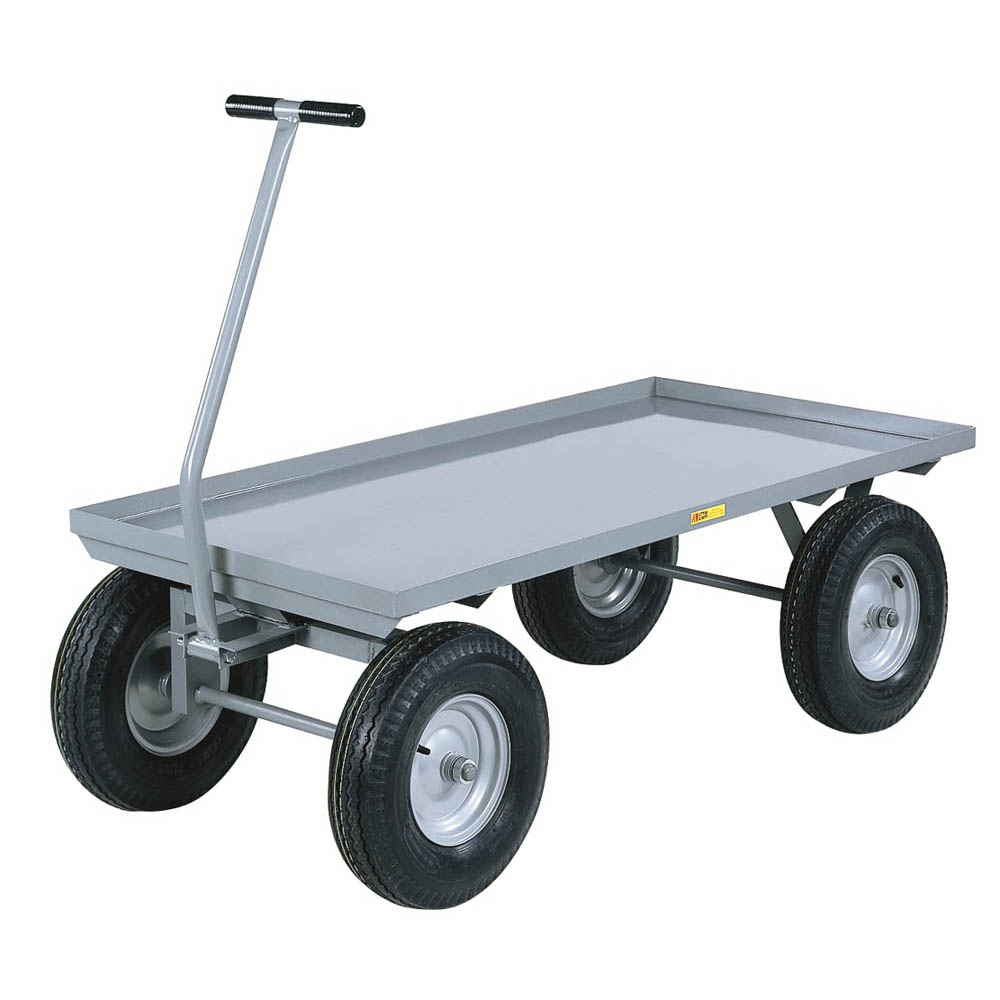

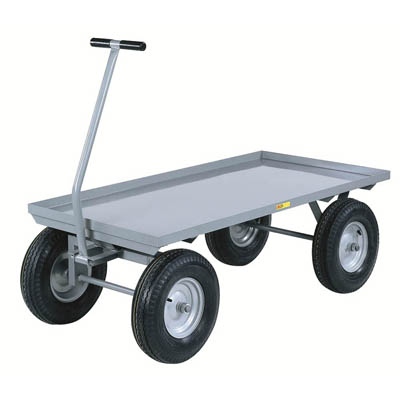

Fifth wheel steering describes a type of steering where the front wheels and axle assembly pivot on a center point, which is referred to as the fifth wheel. Because the steering wheels encounter less friction when turning than would be encountered in a swivel caster, wagon trucks with fifth wheel steering can be easier to maneuver under heavier load conditions. This is especially true when softer, wider pneumatic wheels are required because of the use on rough or uneven surfaces. Wagon Trucks with this type of steering are typically pulled, but can also be pushed. T-handle with vinyl handgrips allows two man operation.
- Heavy 12 gauge reinforced steel decks with 1-1/2 " retaining lip, or flush edge
- Full 1 -inch diameter axles and roller bearing wheels.
- Structural channel undercarriage for heavier loads and durability
Product details
Model # = CH-3672-12P
Weight
Width
Depth
187
36
72
Height
Adjustable Height
Freight Class
17
No
125
Quick Ship
Ships Assembled
Material
No
Yes
12ga Steel
Total Capacity
Shelf Capacity
Number of Fixed Shelves
2000lbs
-
-
Number of Adjustable Shelves
Number of Doors
Manual Close or Self Close Doors
-
-
-
Number of Bins
Pegboard Included
Loubvered Panel Included
-
No
No
Number of Drawers
Optional Drawers
Legal or Letter Size Drawers
-
No
-
Option to Add Casters
Caster Material
Caster Brakes
Yes
12" Pneumatic
-
Floor Lock
Handle Type
Country of Origin
-
Other
USA
Online shipping quotes for orders over 6 pieces are likely incorrect and invalid. Please call for a quote.
