Capacity (Gallons) |
Model No. | Dimensions | # of Shelves | Weight |

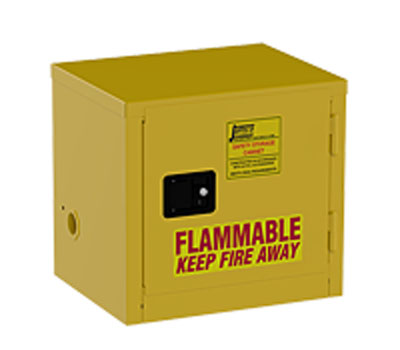

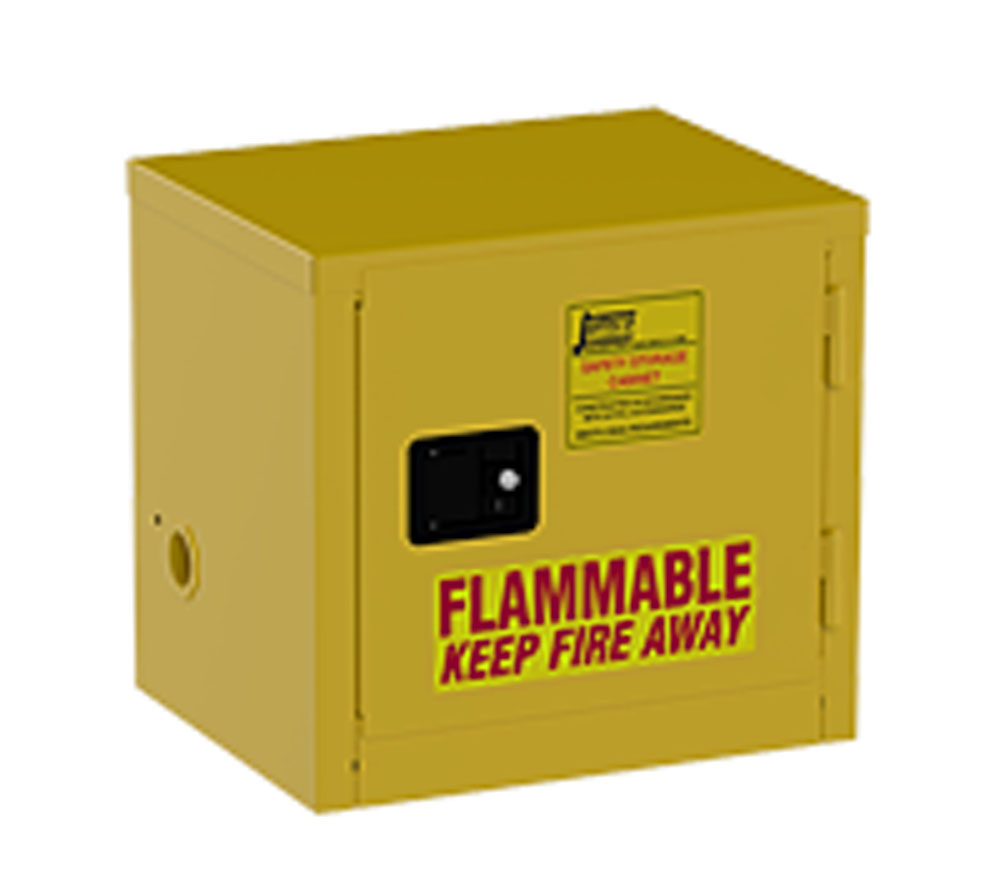

6 | BA06* | 23"W x 18"D x 22"H | 0 | 92 lbs. |

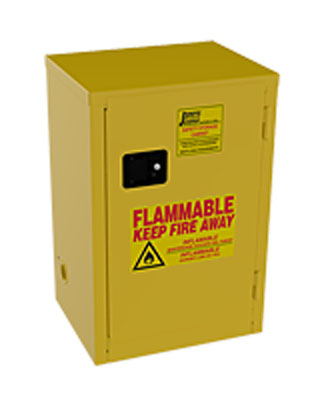

12 | BA12 | 23"W x 18"D x 35"H | 1 | 130 lbs. |

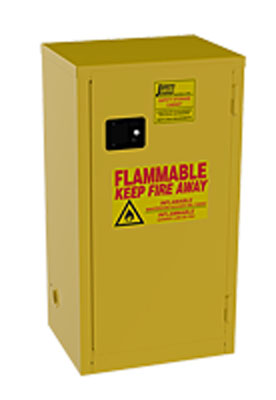

18 | BA18 | 23"W x 18"D x 44"H | 2 | 166 lbs. |

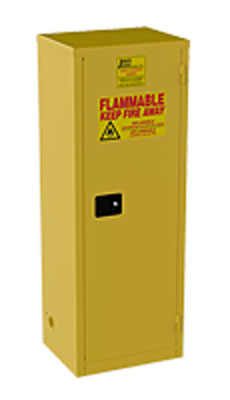

24 | BA24 | 23"W x 18"D x 65"H | 3 | 244 lbs. |

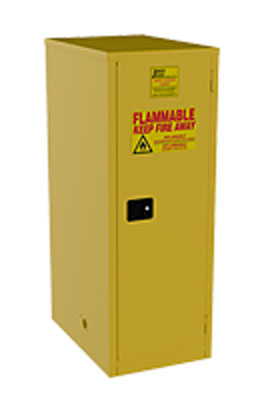

60 | BA60 | 23"W x 34"D x 65"H | 3 | 410 lbs. |
- All welded double wall 18 gauge construction with 1-1/2" insulating air space.
- 2" Leakproof sill to contain leaks.
- Lockable flush mounted handle with 2 keys.
- Door has 3 point locking system and radius edges.
- Door is double walled, 14 gauge outside & 18 gauge inside.
- 4' heavy duty welded hinges with brass pins.
- Galvanized steel shelf louver at mid height.
- Twin 2' flame arrester vents.
- Adjustable leveling feet.
- Powder coated yellow finish.
- Safety signage in large red letters.
- Grounding connector.
- Meets OSHA, and NFPA code 30.
- Manual Close door opens 180 ° .
- Chemical storage maximum - Class I & II - 60 gallons, Class III - 120 gallons.
*Not FM Approved
