Model No. | Dimensions | Deck Height | Wheel Type | Weight |
NBH-2448-PH
|
24"W x 48"D x 45-1/2"H | 16-1/2 " | Phenolic | 163 lbs. |
NBH-3048-PH
|
30"W x 48"D x 45-1/2"H | 16-1/2 " | Phenolic | 172 lbs. |
NBH-3060-PH | 30"W x 60"D x 45-1/2"H | 16-1/2 " | Phenolic | 188 lbs. |
NBH-3072-PH | 30"W x 72"D x 45-1/2"H | 16-1/2 " | Phenolic | 192 lbs. |
NBH-3660-PH | 36"W x 60"D x 45-1/2"H | 16-1/2 " | Phenolic | 194 lbs. |
NBH-3672-PH | 36"W x 72"D x 45-1/2"H | 16-1/2 " | Phenolic | 207 lbs. |
5,000 lbs. Capacity

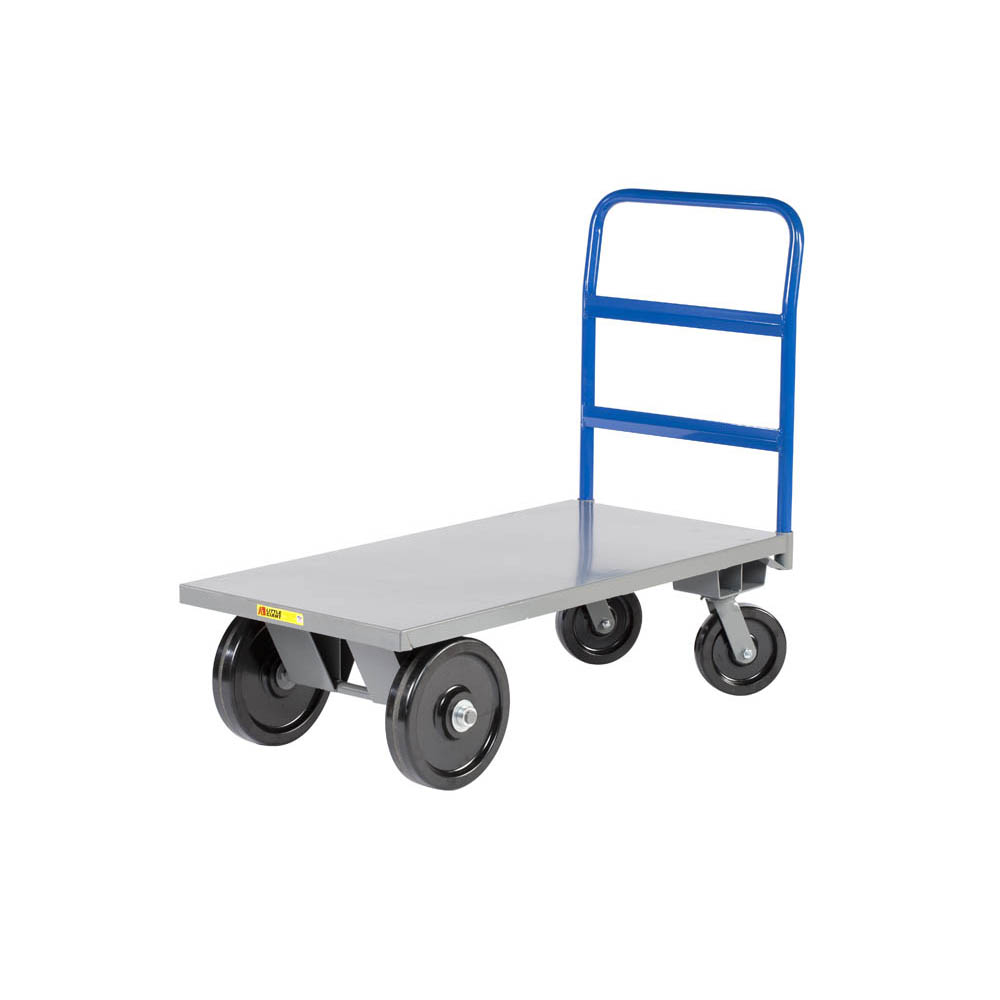

Trucks are formed into a solid unit with a 12 gauge steel deck welded to a structural steel frame. Sturdy removable pipe handle extends 29 " above deck. Axle mounted load wheels are 12 " x 2-1/2 ", swivel caster wheels are 8 " x 2 ". Deck height 16-1/2 ".
